3560-LAZ 8″ x 18″ Laser Engraving Plate

$262.50

8″ x 18″ Laser Engraving Plate
The Laser Tooling Plate can be mounted to your own fixture, or it can be purchased along with a Sherline XY base with 18″ table (P/N 6540-LAZ./6541-LAZ).

Buy product

Product Description

About the 18″ Laser Engraving Plate

3560laz_pic4
The photo shows the new X/Y Slide table and mounted Laser Engraving Plate up close and integrated with a Langolier Open Table system.

Shortly after Sherline purchased a new engraving laser from Jimani we decided to manufacture our own laser engraving tooling plate. Jimani was already using our rotary table, and since we make our own X/Y tables we believed that we could build a custom X/Y table with a tooling plate that would enhance the operation of the laser while adding ease and versatility to set-ups.

The tooling plate is 8″ x 18″ x ¾” black anodized 6061 aluminum.

This tooling plate was designed to mount on our 18″ Industrial X/Y Slide (P/N 6540/6541). The slide has 5″ of Y-axis travel and 13.6″ of X-axis travel. Handwheels are calibrated in .001″ increments for P/N 6540 and in .01mm increments for P/N 6541.

We at Sherline Products believe that our 8″ x 18″ laser engraving tooling plate will be a great addition to any engraving laser. Custom tooling plate hole patterns can be quoted upon request.

Some of the Features of the Tooling Plate

  • (115 Green) Dual purpose ¼” holes, on 1″ centers. These holes are threaded ¼-20 on the bottom and reamed to ¼” on the top. This allows each hole to be used as a “part locating” hole when you insert a ¼” dowel pin. Each hole can also be used as a clamping hole using the ¼-20 thread.
  • In addition to the ¼-20 holes, the plate also has (16 Red) 10-32 holes which are positioned to mount our Sherline rotary table (P/N 8730) and tilting angle plate (P/N 3750).
  • There are (5 Black) ¼” through holes for locating the tooling plate square to the table.
  • There is one (Purple) 5/16″ oiler access hole so you can fill the mill saddle oiler without removing the tooling plate.
  • There are (10 Blue) T-nut mounting holes to assemble the plate to our mill table.

See diagram below for hole location and description.

35610LAZ_diagram1
Click on diagram to view a larger image.

Other Purchasing Options:

1140 3-Jaw Chuck “Pin Jaws”
3700 4″ Rotary Table
3726-LAZ 8″ Diameter 3D Scanning Plate
3727-LAZ 10″ Diameter 3D Scanning Plate
3728-LAZ 12″ Diameter 3D Scanning Plate
6540-LAZ/6541-LAZ Laser Engraving Plate & XY Slide w/18″ Table
6540-18/6541-18 XY Slide w/18″ Table

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 3560-LAZ Instructions

Instructions PDF Download

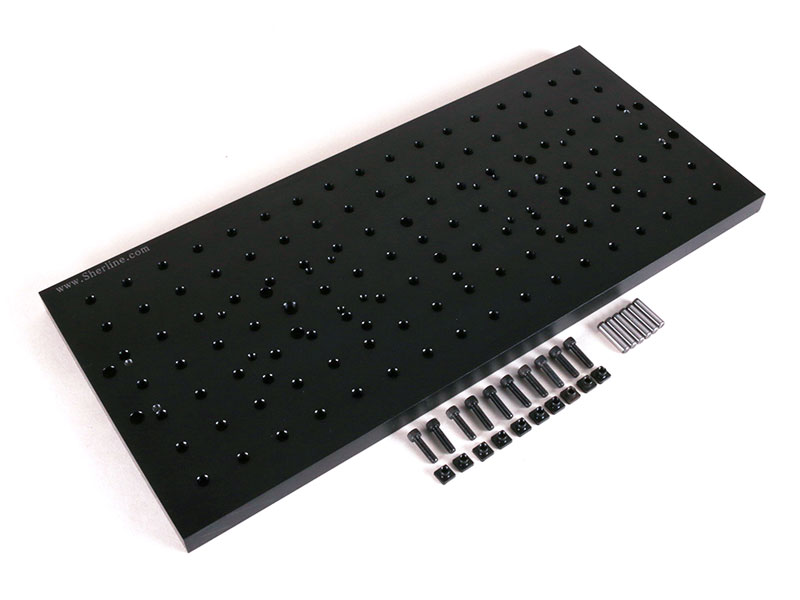

356100LAZ 8″ x 18″ Laser engraving tooling plate
40330 (10) 10-32 x 5/8″ SHC Screw
30560 (10) 10-32 T-nuts
35630 (6) 1/4″ x 1″ steel dowel pins
