Laser Engraving Tilting Angle Table

-

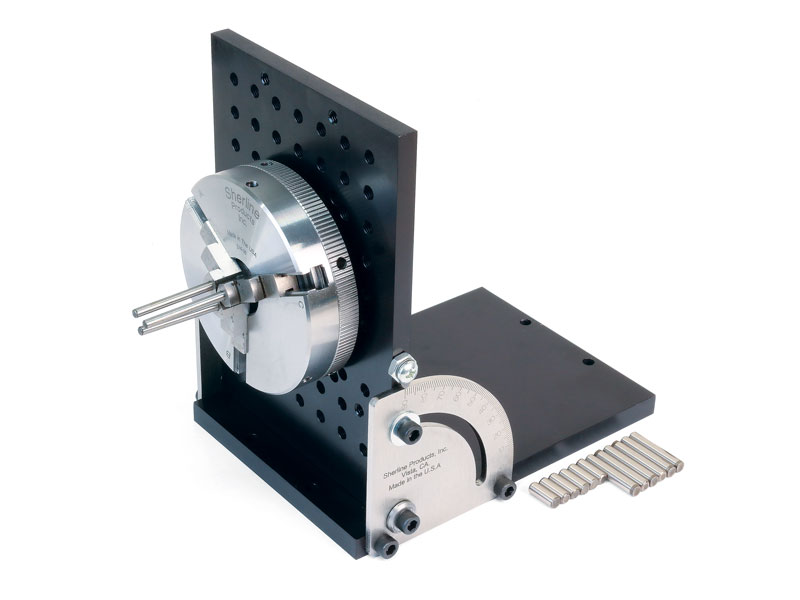

Laser Engraving Tilting Angle Table (Chuck and Rotary table not included. Shown for reference only.)

SKU: 3750LAZ Category:

Product Description

About the Laser Engraving Tilting Angle Table

We came up with the concept of this tilting angle table for laser engraving because we realize that most laser engraving shops don’t have access to a machine shop that can make special fixtures for their parts. Most laser engraving shops have an assortment of blocks, and pins, and shims that they will use to build a “less than accurate” setup to hold parts on an angle.

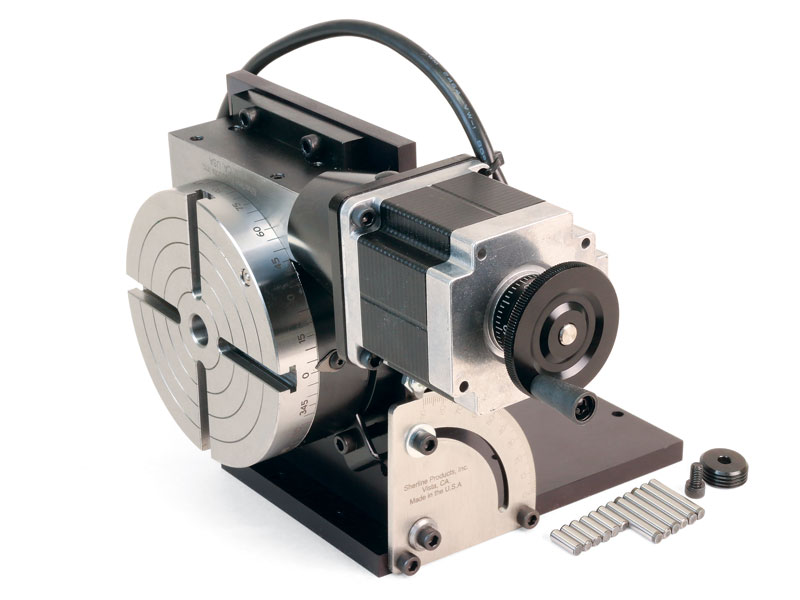

This accessory offers a great variety of setup options. It was designed to accept several of our other laser engraving accessories, such as our CNC rotary table (P/N 8730) and our 3-jaw chuck with pin jaws (P/N 1140). The table also has (66) “dual purpose” 3/16″ holes. These holes are reamed on the top half to accept 3/16″ steel dowel pins (for locating parts) and tapped 10-32 on the bottom half so you can use hold-down clamps.

The tilting angle table includes the following

  • Hold-down clamp set (includes):
    • (2) Hold-down clamps
    • (2) 10-24 1-1/4″ Carriage bolts
    • (1) 10-32 7/8″ Socket head cap screws
    • (1) 10-32 1-1/4″ Socket head cap screws
    • (2) 3/16″ I.D. washers
  • (6) 3/16″ x 1/2″ steel dowel pins
  • (6) 3/16″ x 1″ steel dowel pins
  • (1) Tilting angle table 3/4-16 chuck hold down

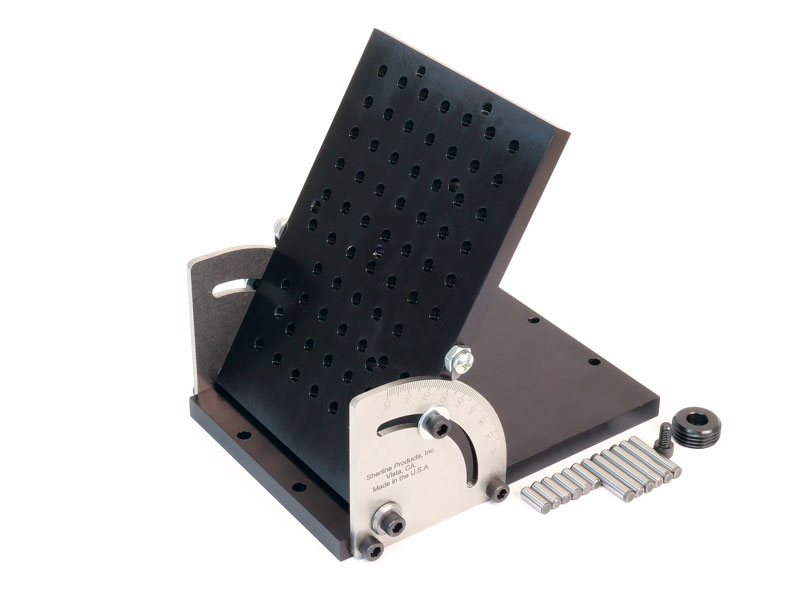

The table can be set at any angle from 0° to 90° in order to hold your part with the tapered surface perpendicular to the laser beam. The tilting angle table can be clamped to any flat surface or held in a vice. The base also has a hole pattern so it can be mounted easily to our Laser Engraving Plate & XY Slide w/18″ Table (P/N 6540LAZ).

Angle table mounted on engraving plate
Engraving laser in progress

Other Purchasing Options:

1140 3-Jaw Chuck “Pin Jaws”
3700 4″ Rotary Table
3726-LAZ 8″ Diameter 3D Scanning Plate
3727-LAZ 10″ Diameter 3D Scanning Plate
3728-LAZ 12″ Diameter 3D Scanning Plate
6540-LAZ/6541-LAZ Laser Engraving Plate & XY Slide w/18″ Table
6540-18/6541-18 XY Slide w/18″ Table

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 3750-LAZ Instructions

Instructions PDF Download

Tilting Angle Table
Tilting Angle Table Material Aluminum
Body Coating Anodized
Body Dimensions (H x W x D) 2.625″ x 5.94″ x 4.125″
Laser Tilting Angle Table Parts List
37540LAZ Tilting Angle Table Bottom Plate
37510LAZ Tilting Angle Table Top Plate
37529 Tilting Angle Table Side Plate, Engraved (left)
37530 Tilting Angle Table Side Plate, Engraved (right)
37550 Tilting Angle Table Bushing (2)
37560 Tilting Angle Table 3/4-16 Chuck Hold Down
40670 10-32 x 1/2″ SHC Screw (11)
40660 3/16″ I.D. Washer (2)
50120 Pointer (2)
32100 10-32 hex nut (2)
37531 8-32 X 3/8″ Pan Head Phillips Screw (2)
37570 3/16 ” x 1/2″ steel dowel pins (6)
37580 3/16 ” x 1″ steel dowel pins (6)
Hold-Down Clamp Set Parts List
35580 Hold-down clamp (2)
30140 10-24 1-1/4″ Carriage bolt (2)
40740 10-32 7/8″ SHC Screw
40710 10-32 1-1/4″ SHC Screw
40660 3/16″ I.D. washer (2)
