5000A/5100A Standard Mill Package A

$1,030.00

Vertical  Milling Machine (10″ base) Package Deals.

Buy product

SKU: 5000A/5100A Categories: , ,

Product Description

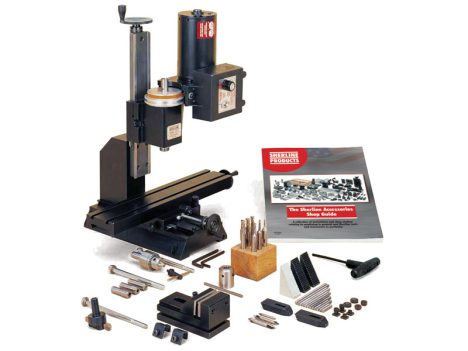

5000A/5100A Package Includes:

Model 5000 (5100 metric) Vertical  Milling Machine (10″ base) and standard accessories PLUS:

  • 3072 ¼” Jacobs drill chuck w/ key, #1 Morse arbor with drawbolt
  • 3013 Step block hold-down set
  • 3020 5/32″ Sherline hex T-driver
  • 3021 3-piece center drill set
  • 3052 Fly cutter w/carbide bit
  • 3060 3-piece mill collet set w/drawbolt
  • 7400 6-piece 3/8″ 2-flute double-ended end mill set (7401 4-flute set may be substituted depending on availability)
  • 3079 3/8″ end mill holder
  • 3551 milling vise
  • 5327 Sherline Accessories Shop Guide book

Standard equipment for the model 5000 (5100 metric) mill includes:

  • A powerful 90V DC motor with electronic speed controller
  • 10″ base
  • Standard 1-5/8″ (41mm) handwheels on the X- and Y-axes, and one 2-1/2″ (63mm) with thrust bearings on the Z-axis. Each handwheel has laser engraved aluminum handwheel collars
  • 2.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots
  • Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
  • Available with red handwheels upon request

New Mill Features

  • Oil reservoirs on the X/Y axes and the Z axis to help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew

Other Purchasing Options:

5000A-DRO/5100A-DRO  Mill DRO Factory Pre-installed
5000A-CNC/5100A-CNC CNC-Ready Mill

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

Max clearance
(table to spindle)
8.00″ (203 mm)
Throat
(no spacer)
Optional
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 3.00″ (76 mm)
Travel, “Z” Axis 6.25″ (159 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 14.75″ (375 mm)
Depth Overall* 11.75″ (298 mm)
Height Overall (Max.)* 20.75″ (527 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 30 lb. (13.6 kg)td>
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Column rotation (90° left/right)
Column pivot (90° forward/back)
Column swing (90° left/right)
Column travel (in/out) 5.5″ (140 mm)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

We offer two types of 3D object files: .igs and .stp.

  1. To view .igs files you need an IGS viewer. CLICK HERE to download a FREE IGS viewer.
  2. To view .stp files you need a STP viewer. CLICK HERE to use Autodesk’s FREE A360* online file viewer. STP is a file extension for a 3-D graphic file used by CAD software. STP stands for STandard for the Exchange of Product model data. STP files are used to store 3D image data in an ASCII format, following the standards defined in ISO 10303-21: Clear Text Encoding of the Exchange Structure.
  3. Each 3D file format has been compressed into a .zip file to save file space. Click on the .zip file link below to download it to your computer.
  4. Extract the .zip file to the drive location of your choice.
  5. Open the .igs file using the IGS Viewer, or open the .stp file using the A360 Autodesk online viewer.

*NOTE: There are also other free STP viewers that can be downloaded directly to your computer.

CLICK HERE to download the 3D IGS file
CLICK HERE to download the 3D STP file
