5400-CNC/5410-CNC CNC-Ready Deluxe Mill

$1,055.00

Vertical  Milling Machine (12″ base) + CNC-Ready stepper motor mounts

Buy product

SKU: 5400-CNC/5410-CNC Categories: ,

Product Description

Any Sherline mill can be ordered with stepper motor mounts factory installed in place of the handwheels and ready for the application of stepper motors and computer numeric controls (CNC). Sherline supplies the mounts, and several aftermarket suppliers offer motors, drivers and software to complete the CNC system. You supply the 486 or better computer. See our CNC Dealers page for a list of supplies and links to their home pages.

Sherline recommends using dual shaft stepper motors so that handwheels can be applied to the rear shaft for manual control. With that in mind, handwheels for each axis are included with the machine, although they cannot be used until stepper motors are installed. Sherline also offers high quality stepper motors, which can be found in the accessories section of this site.

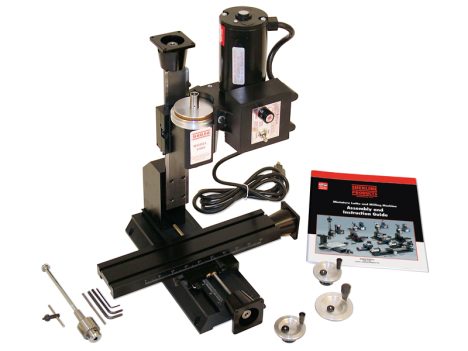

Standard equipment for the model 5400 (5410 metric)-CNC mill includes:

  • A powerful 90V DC motor with electronic speed controller
  • 12″ base
  • The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.* 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes. Each handwheel has laser engraved aluminum handwheel collars
    *NOTE: CNC-ready machines cannot be operated manually until stepper motors are installed.
  • 2.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots
  • Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
  • 1297 Headstock spacer block
  • 3072 ¼” Jacobs drill chuck w/ key, #1 Morse arbor with drawbolt
  • Available with red handwheels upon request

New Mill Features

  • Oil reservoirs on the X/Y axes and the Z axis to help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew

Other Purchasing Options:

5400A-CNC/5410A-CNC Package
67127 Stepper Motor
8540/8541 – Complete CNC Mill System

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

Max clearance
(table to spindle)
8.00″ (203 mm)
Throat
(no spacer)
Optional
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 5.00″ (127 mm)
Travel, “Z” Axis 6.25″ (159 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 15.00″ (381 mm)
Depth Overall* 14.00″ (356 mm)
Height Overall (Max.)* 20.75″ (527 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 40 lb. (18.2 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Click on the link for the exploded view of the 5000 and 5400 Series CNC-Ready Mills to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.
