5935 5/8″ Gang-Tooling Tool Post

$80.00

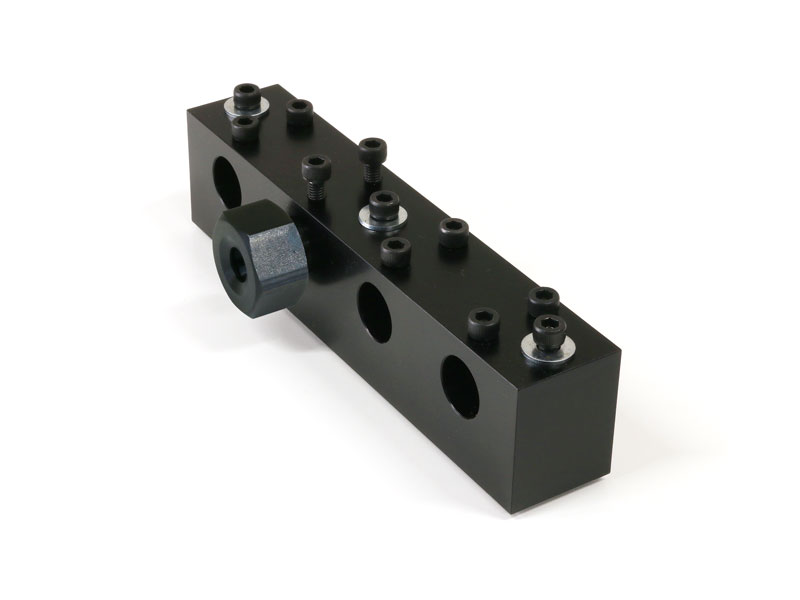

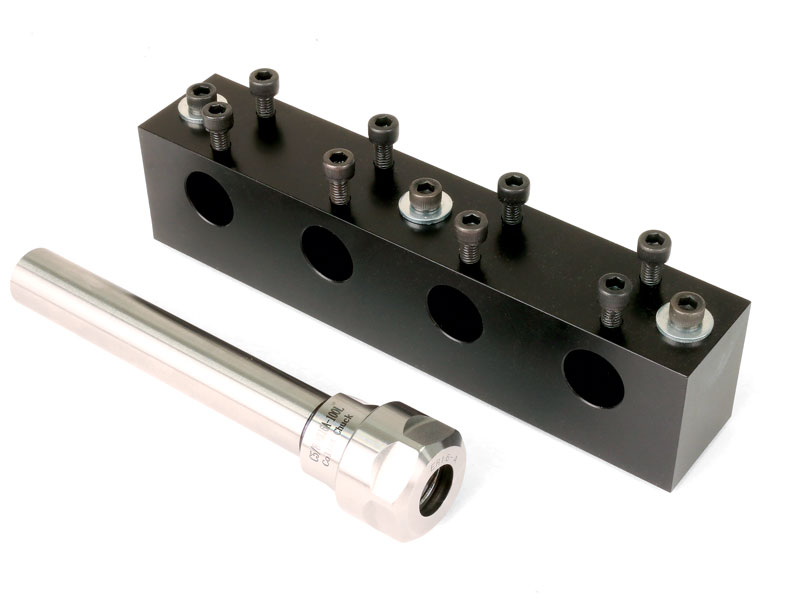

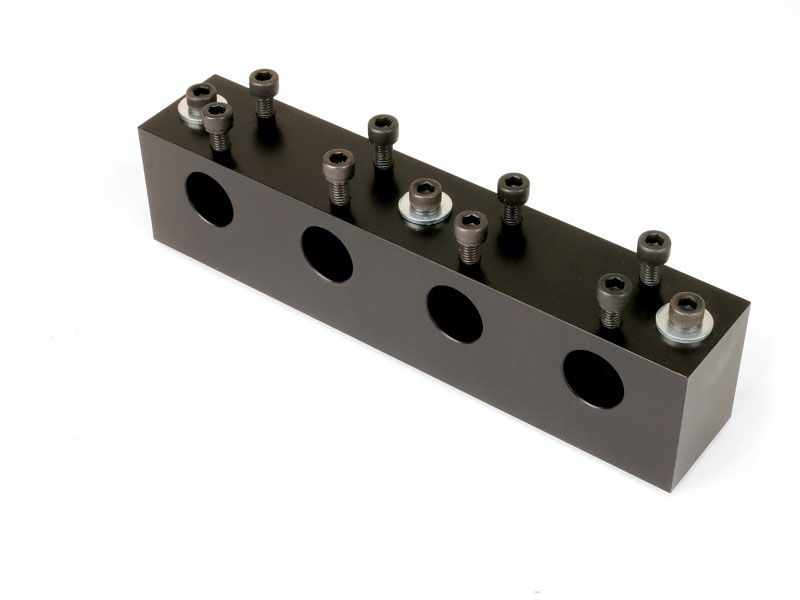

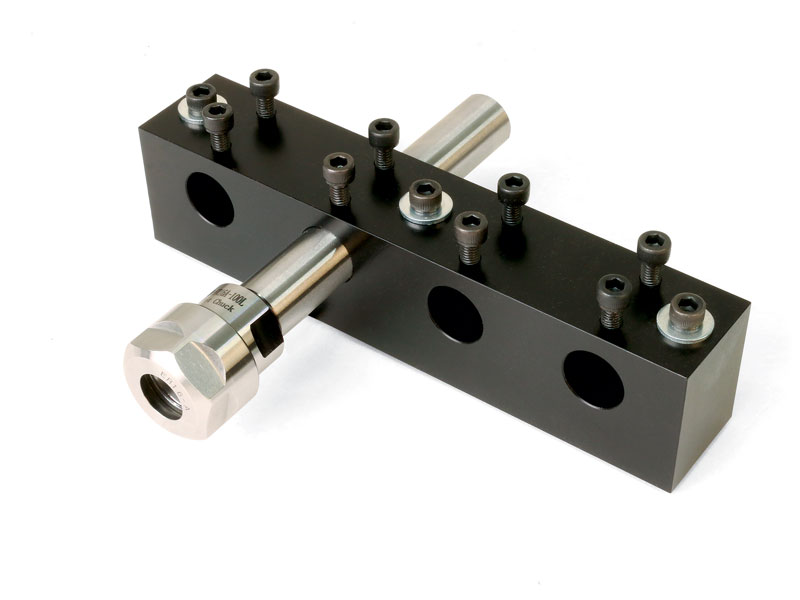

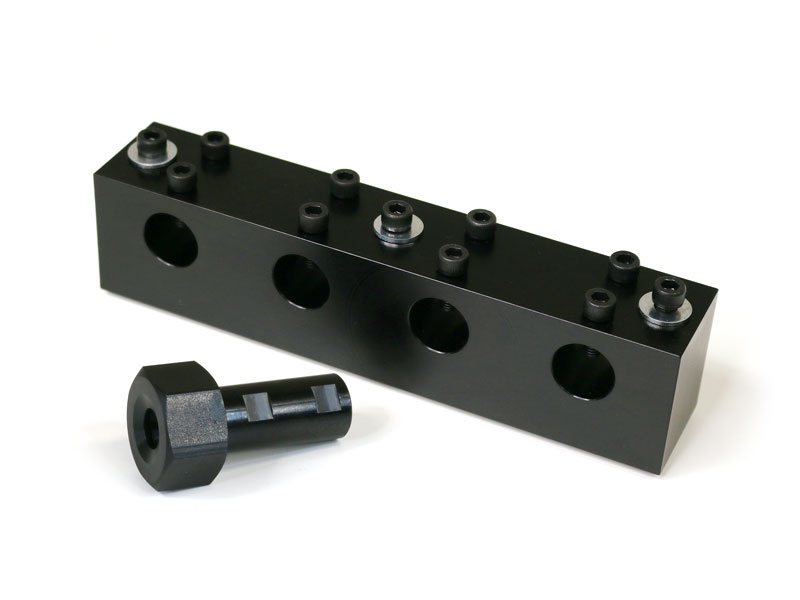

5/8″ Gang-Tooling Tool Post (tools not included, shown for reference only)

Buy product

SKU: 5935 Categories: ,

Product Description

About the 5/8″ Gang-Tooling Tool Post

We designed our gang-tooling tool post specifically for our customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

Our gang-tooling tool post offers a convenient and accurate way to hold up to four tools with a known centerline-to-centerline distance of 1.500″. This tool post has (4) 5/8″ holes for customers who want to use ER16 collet holders with a 5/8″ shank.

For video instructions on “Indicating in Your Gang-Tooling Tool Post,” click on the video tab above, or visit our Videos page.

Includes the following:

  • 5/8″ Gang-Tool Post Body
  • 10-32 x 1″ SHC Screw (3)
  • Extended Tool-Post T-Nut (3)
  • 10-32 x 3/4″ SHC Screw (8)
  • #10 Washer (3)
  • Steel Dowel Pin 1/4″ x 3/4″ (2)

Considerations Regarding this Tool Post and Its Possible End Uses

There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list (click on the Instructions tab above to download the document). This tool post is designed to be used with our 13″ Mill Table (P/N 50180 or P/N 67050) in place of the lathe crosslide. Other recommended optional equipment includes P/N 1294 Riser Plate in order for your tools to be on centerline with the headstock spindle.

NOTE: While the gang-tooling tool post will mount on the the 6″ and 8″ crosslides, its size renders it unusable on either of these crosslides.

Other Purchasing Options:

50180 13″ Mill Table
50170 X-axis Leadscrew (inch)
51170 X-axis Leadscrew (metric)
67050 13″ Mill Table, Standard, CNC
50171 CNC, X-axis Leadscrew (inch)
51171 CNC, X-axis Leadscrew (metric)
1294 Riser Plate for 8″ Crosslide
5930 3/8″ Gang-Tooling Tool Post

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 5930 Instructions

Instructions PDF Download

Indicating in your Sherline Gang-Tooling Tool Post

Insert Holder Tool Post
Tool Post Body Material Aluminum
Body Coating Black Anodized
Body Dimensions (H x W X D) 1.4375″ x 6.25″ x 1.1875″
59305 5/8″ Gang-Tool Post Body
40340 (3) 10-32 x 1″ SHC Screw
40250 (3) Extended Tool-Post T-Nut
40690 (8) 10-32 x 3/4″ SHC Screw
40660 (3) #10 Washer
59303 (2) Steel Dowel Pin 1/4″ x 3/4″
