Replacement Carbide Insert for 7620 Fly Cutter

-

SKU: 7622 Categories: , Tag:

Product Description

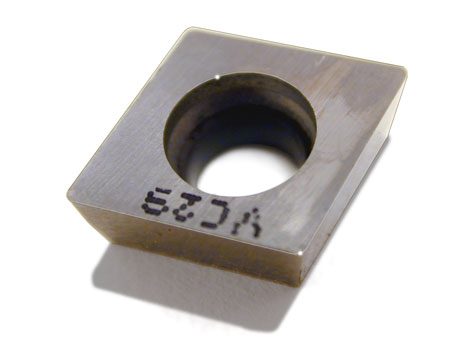

About the Replacement Carbide Insert

This is the replacement carbide insert for the Single Flute Insert Fly Cutter. Though not inexpensive, when you consider you are getting two cutting tools in one and are saving a lot of time in tool sharpening, it is really a pretty good deal.

Carbide cutters give good finishes on hard-to-machine materials such as cold rolled steel. They will also work on aluminum, brass or leaded steels, and will last practically forever; however, the best finishes on those materials are still achieved with a good, sharp high-speed steel tool.

NOTE: Replacement carbide inserts for other inserted tip tools are available through Sherline. See our page on carbide tools.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Instructions

Instructions PDF Download

CUTTING EDGE LENGTH 9.67 mm
CORNER RADIUS 0.40 mm
FEED RATE 0.12–0.25 mm
DEPTH OF CUT 0.4-3.0 mm
ISO DESIGNATION CPMW09T304-RK6 WKK20S
