Radius Cutting Attachment

-

Includes cutting tool

SKU: 2200 Category:

Product Description

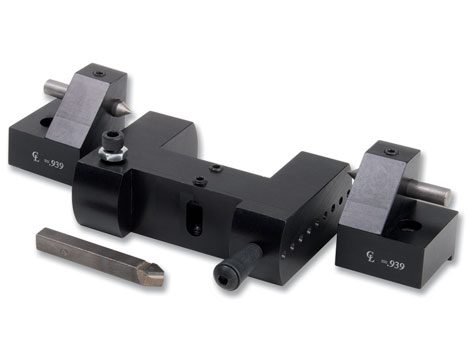

About the Radius Cutting Attachment

The radius cutting attachment swings a tool through an arc to put a radius on the end of a part. The pivot points and tool position are adjustable, so it is capable of cutting either a concave or convex shape.

It came about as a result of studying the method used to shape grinding wheels. Conventional thinking says that lathe tools should move parallel to the tool’s longitudinal axis or horizontally across it. Once it was realized that the tool could also be pivoted vertically on this axis, the design of this tool became much easier to conceive. Believe it or not, a technician with a need to cut an accurate radius to make prosthetic eyeballs got us started on putting this tool into production. Now anyone with a need to put a nice looking radius on the end of a part can benefit from the way this accessory makes it easy. It may not be something that a lot of people need, but it is typical of our commitment to serve all of our customers. If you need to (or just think it would be fun to) put a radius onto or into the end of a part, there is no easier way to do it than with this accessory. It can also cut a complete ball in a two-step operation covered in the instructions.

Note that the width of this attachment requires that your Sherline lathe have a 6″ crosslide table. Older lathes that have the 4″ table will not be wide enough. You can upgrade your lathe to the 6″ table by ordering the following parts and changing tables: 6″ Crosslide table, inch or metric leadscrew or the crosslide assembly. All other parts transfer from your old table. Changing tables is very easy.

2200fig9

The radius cutting tool attaches to the crosslide table and is pivoted up and down instead of moved side-to-side as is traditional for cutting on a lathe. It makes what could otherwise be a difficult task easy.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 2200 Instructions

Instructions PDF Download

Using the Radius Cutting Attachment (P/N 2200)

Body and Supports Material 6061 T6 Aluminum
Body and Supports Coating Black Anodized
Pivot Pin Material 12L14 Steel
Max Diameter Cutting Capacity 1.5″ (38mm)
Cutter Material Carbide Tip
Part Number Description Quantity
11941 Carbide Radius Cutting Tool 1
22100 Radius Tool Body 1
22112 Radius Cutter Supports (pair) 1
22120 Radius Tool Center 2
30561 10-32 Tee Nut 2
31080 0-32 x 3/8″ Set Screw 6
32100 10-32 Hex Nut 1
35620 10-32 x 7/16″ SKT HD Cap Screw 2
40690 10-32 x 3/4″ SKT HD Cap Screw 1
40740 10-32 x 7/8″ SKT HD Cap Screw 1
42060 Handwheel Knob 1
