Sherline 5th-Wheel Trailer Hitch Weight Scale

$265.00

LM5 5th-Wheel Trailer Hitch Weight Scale: This simple scale makes trailering safer.
Scales can be ordered factory direct through www.sherlinedirect.com or call (800) 541-0735 during business hours to order.

Buy product

Product Description

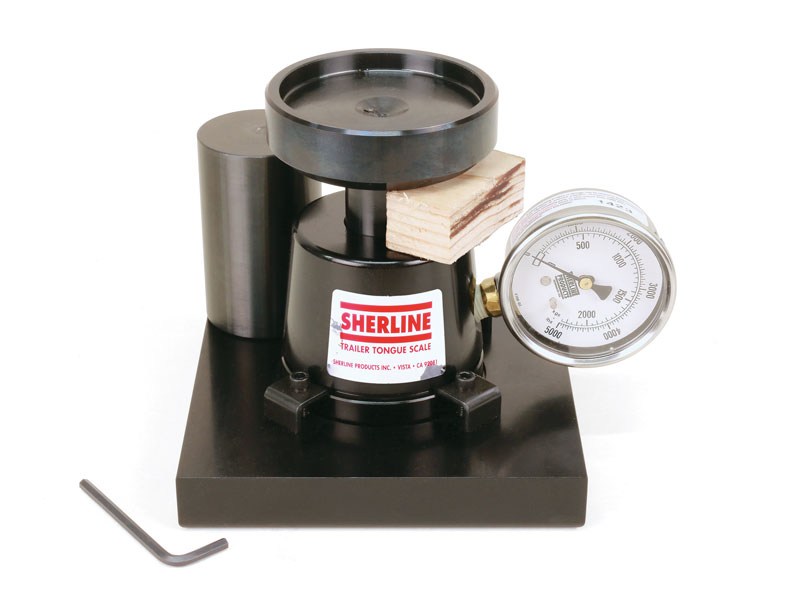

About the 5th-Wheel Trailer Tongue Weight Scale

We made this scale at the request of several of our customers who own fifth-wheel trailers. This scale is a modified version of our original Trailer Tongue Weight Scale. However, it is specifically designed to attach to most fifth-wheel trailer hitches. The piston has also been modified to accept the standard 2-13/16″ diameter kingpin and the locating pin is for hitches that accept the standard 2-13/16″ kingpin.

The scale uses a simple hydraulic principle to convert pressure into a reading in pounds and kilograms on the gauge. No delicate electronics, no batteries, and only one moving part. It comes with a 5000 lb. gauge since 5th-wheel trailers typically carry a larger percentage of the overall weight on the hitch.

The scale is machined from solid billet steel and aluminum. It has a 3.25″ piston and body diameter, a 6″ square by 1″ thick aluminum base, and is about 6″ high. Actual weight is 11 lb. Gauge diameter is 2.75″. This scale comes with a one year guarantee.

All gauges have a dual-scale gauge that reads in pounds on the outside of the ring and the kilogram equivalent on the inside. This feature has been requested by many trailer users outside the USA and has now been incorporated into all the scales. The 0-5000 lb gauge reads to 2250 kg.

lm5_shipping
Shipping and storing configuration

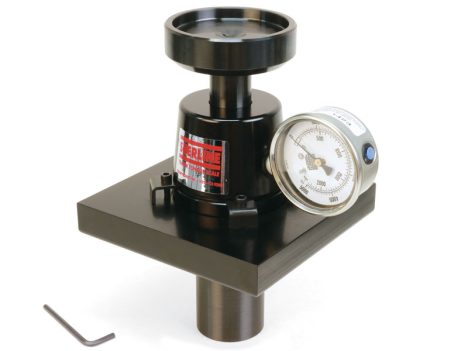

NOTE: When you receive your fifth-wheel trailer hitch weight scale, the “locator pin” will be screwed into the top of the base for ease of shipping and storing. Unscrew the locator pin and screw it into the center hole in the bottom of the base as seen in the photo above.



Trailer Towing Guides and Tales

Click on the Instructions tab to download our Towing Guide, Care and Tips sheet, and cautionary tales of true trailer disasters.

Avoid Trailering Disaster!

If you tow a fifth-wheel trailer behind your truck or SUV and don’t know for sure if the hitch weight is within the recommended range, you could be headed for a disaster. Too much weight and you could damage the hitch, causing fractures in the support frame and a catastrophic failure on the highway. Most fifth-wheel trailer hitches that are installed have a weight capacity that exceeds the weight of the trailer. Where most people get into trouble is when their toys start to get bigger or their load increases as their trip around the states continues. The trailer and load that you started with was fine. It’s the load that you end up with that becomes the problem. So, how can you be sure that you don’t have excessive weight on your hitch?

To properly load and balance a trailer you must KNOW what your king pin weight is, and the Sherline fifth-wheel trailer hitch weight scale offers an easy and inexpensive way to find out.

Other Purchasing Options:

LM Trailer Tongue Weight Scale
LM2 Suspended Hydraulic Scale

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF LM5 Instructions

Instructions PDF Download

Download PDF Trailer Tongue Weight Scale Booklet

Instructions PDF Download

Download PDF Care and Tips Sheet

Instructions PDF Download

Download PDF Part Replacement Instructions

Instructions PDF Download

Download PDF Trailer Disasters

Instructions PDF Download

This Is How Trailer Weight Distribution Dynamics Work

This is why loading your trailer correctly is important. This visual is far better that it can ever be explained in words.

Height 6″ (15.24 cm)
Height w/ locater pin 9.125″ (23.2 cm)
Body diameter 3.25″ (8.3 cm)
Base dimensions 6.0″ x 6.0″ x 1.0″(15.2 cm x 15.2 cm x 2.54 cm)
Max. width at gauge 7.5″ (19.1 cm)
Actual weight 11 lb (5.0 kg)
Shipping weight TBD lb (TBD kg)
Gauge diameter 2.75″ (7 cm)
Gauge scale range Outer Scale: 0-5000 lb = Numbers @ 1000 lb, marks @ 100 lb. increments (Inner Scale: 0-2250 kg)
Hydraulic Fluid installed at factory Texaco Regal R&O 68 industrial (turbine) oil
NOTE: Virtually any motor oil, hydraulic fluid or hydraulic jack oil can be used to replace lost fluid or to refill.
