T1000 Turner’s Cube Puzzle Kit

$82.00

Turner’s Cube Puzzle Kit without chuck

Buy product

SKU: T1000 Categories: ,

Product Description


Everything you need to make a cube puzzle

Here’s a fun project that you can make within an hour or two that will amaze your friends. When done, a tiny cube with a hole through it is contained inside another cube with a hole in it. Both of those are inside a third 3/4″ cube with a hole in it. How did they get in there? How was it made? The kit includes an aluminum cube to practice on and a brass cube for your finished puzzle. Producing the finished cube requires a series of drilling and boring processes explained in the four pages of step-by-step illustrated instructions that come with the kit.

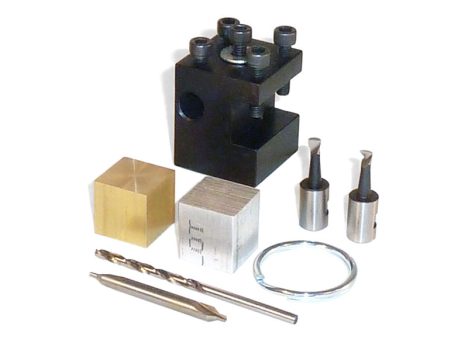

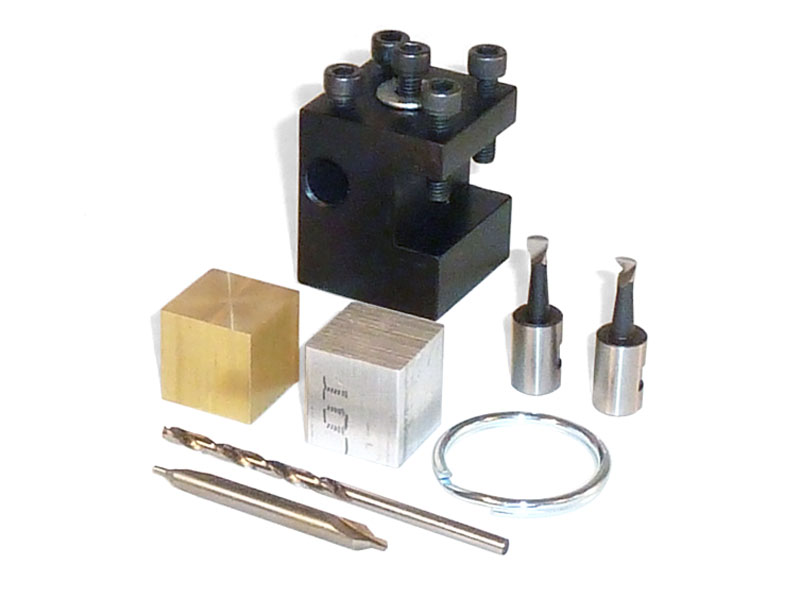

The T1000 kit includes both an aluminum and a brass billet of 3/4″ square stock cut to slightly over 3/4″ long ready for you to make this interesting puzzle on your Sherline lathe and mill. (It can also be made using just the lathe.) Included are a P/N 7600 3/8″ tool post, two P/N 3061 boring tools (one is custom ground as an undercut tool), a 1/8″ drill, a #2 center drill, a key ring and instructions. Complete kit instructions are included that take you step-by-step through the facing, drilling and boring processes needed to free up the jack within the raw stock.

t1000_cube01
Finished cubes in aluminum and brass

t1000_cube11

Other Purchasing Options:

T1076 Turner’s Cube Puzzle Kit w/4-Jaw Chuck
1076 4-Jaw Self-Centering Chuck (3.1″)

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF T1000 Instructions

Instructions PDF Download

¾” cube raw stock (1 ea. 6061-T6 aluminum and brass)
30260 #2 Center drill
30310 1/8″ HSS Drill
3061 Boring Tool
T3061 Boring Tool (Custom ground to make an “undercut tool”)
7600 3/8″ Tool Post
T10001 1.25″ Diameter Key Ring (spring-tempered steel)
