Our new Accu-Pro machines are the biggest, sturdiest, and most powerful Sherline machines to date. These CNC machines embody the strength and reliability of Sherline combined with a state-of-the-art MASSO G3 touch controller and a 36V power supply.
We designed the Accu-Pro line with industrial shops in mind. Each machine has ball screws with beefed-up saddles. The line includes an 18″ benchtop mill with an 18″ table, a 17″ benchtop lathe with an 8″ crosslide, and a benchtop chucker lathe with an 18″ base and 18″ crosslide. The MASSO touch controller has a 36V power supply that runs the 36V, closed-loop stepper motors.
Accu-Pro Standard Features
Ball Leadscrews
- Rolled Ball Screw with BSH Nut
- 10mm Diameter, 2mm Lead
- C7 Accuracy*, P1 Preload
*C7 accuracy has a linear tolerance of 50 micrometers / 300mm or .002″ / 12.0″.
The ball screws are only available in metric.

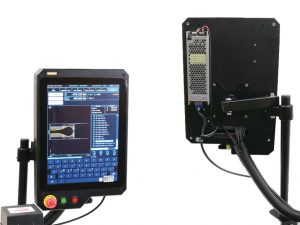

Sherline/MASSO G3 Touch Controller
- Industrial cable system from the controller to the machine
- 36-volt power supply
- Touch-controller stand
- G-code Spindle Speed Control
- WiFi capability
- USB 4 GB flash drive (includes software, machine settings, sample programs, and instructions)
CNC Axes
- 36-volt, Closed-Loop, Hi-Torque Stepper motors with a 70 in/minute maximum feed rate
- Stepper-motor mounts with high-torque couplings
- Professional cable wraps and covers for each axis
- MASSO homing sensors on all axes

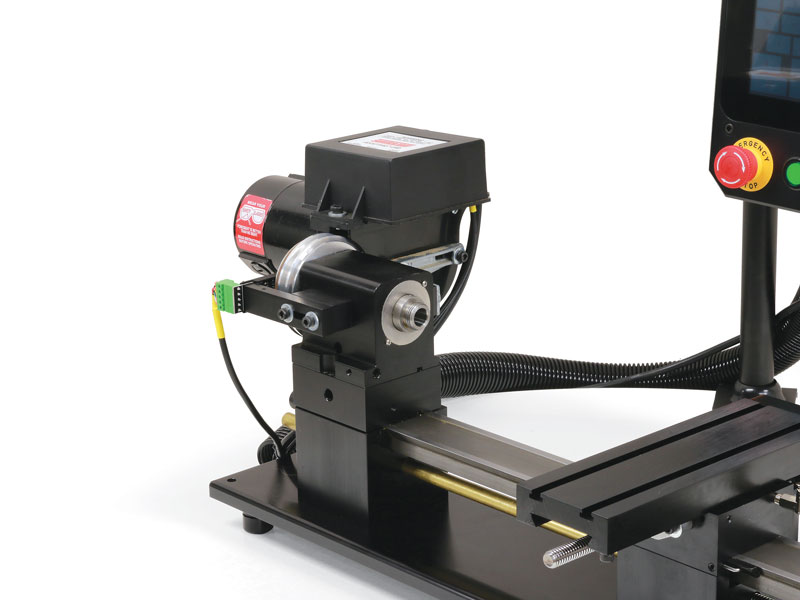

Headstock/Motor
- 90V DC motor
- Headstock with precision C5 bearings
- Optical encoder
Accu-Pro Machine Features

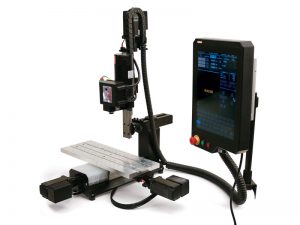

Accu-Pro VMC Ball Screw Mill with MASSO Touch Controller
- 18″ base
- Electroless nickel/Teflon coated mill saddle
- 15″ mill column bed with nickel/Teflon coating
- IGUS E-Chain flexible cable carrier for the Z-axis
- Headstock with #1 Morse taper, 3/4 x 16 spindle thread with precision C5 bearings
- Headstock spacer block
- 18.0″ (457 mm) x 2.75″ (70 mm) table with two T-slots
- 7″ x 18″ tooling plate with three T-slots
- 1/4″ Drill Chuck w/ key, #1 Morse arbor with drawbolt
- Oil reservoirs on the X/Y axes and the Z-axis to help keep critical parts lubricated
- Accordion way cover and brass-tube leadscrew cover that keeps chips off of the Y-axis leadscrew

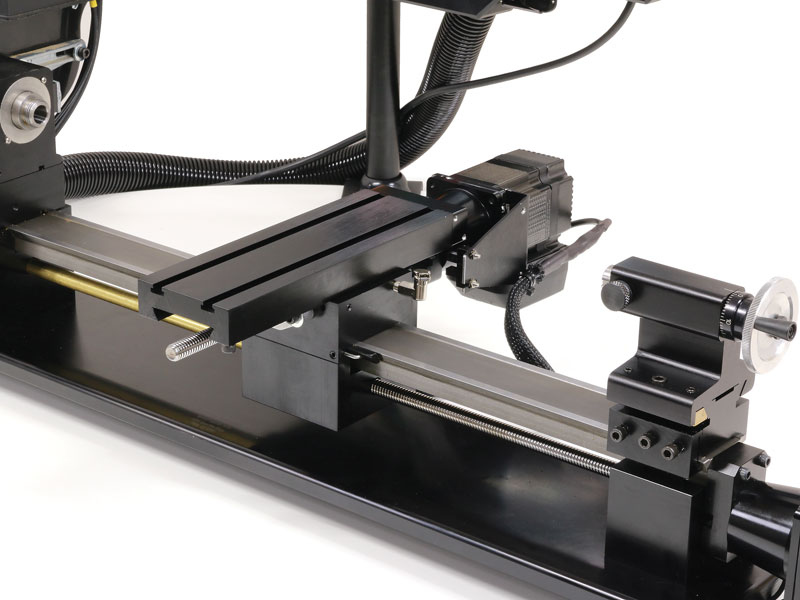

- 24″ (610mm) steel bed that has 17″ (431mm) between centers
- 8″ crosslide
- Headstock with #1 Morse taper, 3/4 x 16 spindle thread with precision C5 bearings
- Rocker tool post (P/N 3057)
- Oil reservoirs on the X/Z saddle to help keep critical parts lubricated
- Brass leadscrew cover that keeps chips off the front of the Z-axis leadscrew

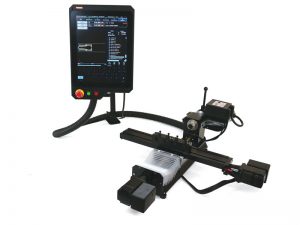

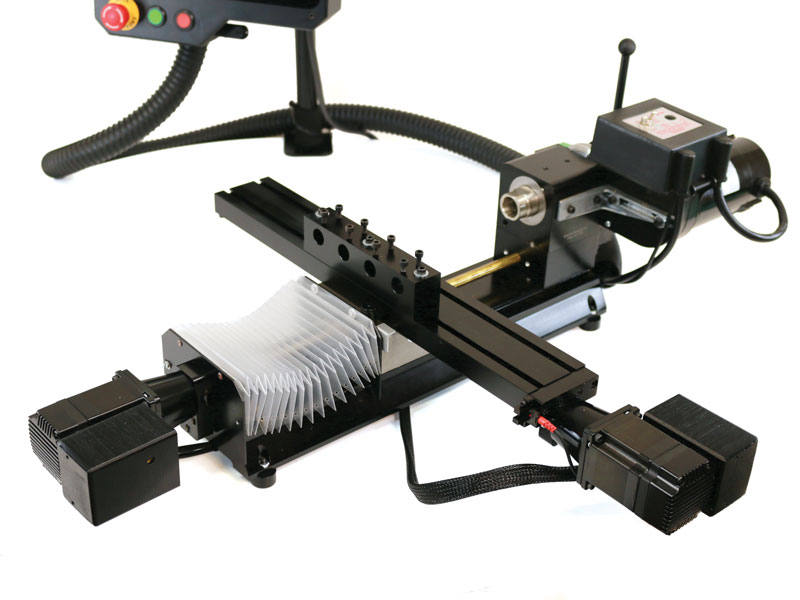

Accu-Pro Turn Ball Screw Chucker Lathe with MASSO Touch Controller
- 18″ aluminum base
- Electroless nickel/Teflon coated saddle
- 18.0″ (457 mm) x 2.75″ (70 mm) table with two T-slots
- Your choice of gang-tooling tool posts that hold up to four tools: 3/8″ (P/N 5930) or 5/8″ (P/N 5935)
- Headstock with nickel-plated 3C spindle with precision C5 bearings
- Industrial 3C Lever Collet Closer
- Oil reservoirs on the X/Z saddle to help keep critical parts lubricated
- Accordion way cover and brass-tube leadscrew cover that keeps chips off of the Z-axis leadscrew
The MASSO G3 CNC controller, power supply, stepper motors, cable system and optical encoder are sold as a part of our Accu-Pro line of machines and are not available for purchase separately or as an upgrade option to existing machines.
