12″ Tabletop Mill XYZ Base w/ Ball Screws – CNC-Ready

-

2 to 4-week lead time

  • *Preferred unit of measurement for laser engraved portions
    Please note that our ball screws only come in a metric pitch
  • *Will you be using Sherline’s CNC driver box?
  • 15" Column Upgrade

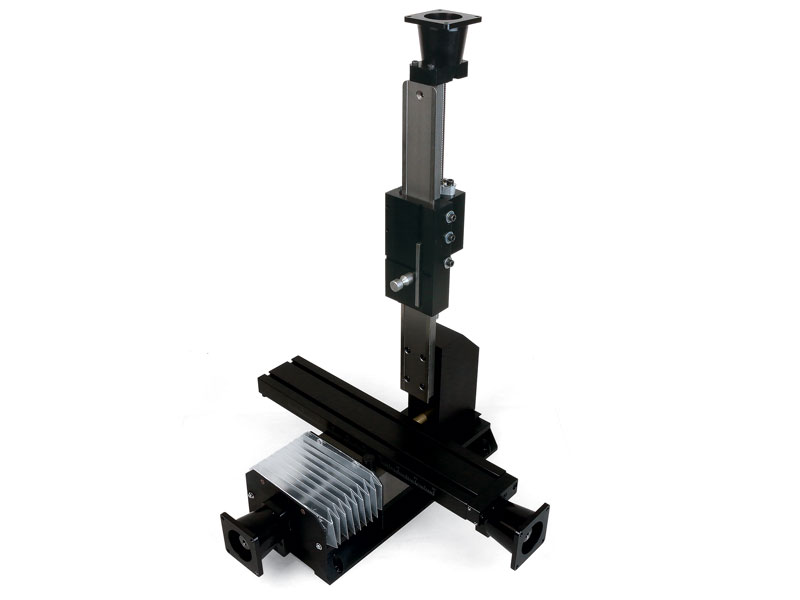

    Replace the standard 11" mill column (4.85" travel) with a 15" column, increasing travel to 8.85" on the Z.
Prop 65 Warning

Purpose of the Sherline Mill XYZ Bases

The Sherline ball screw mills can be purchased without the headstock and motor/speed control. This allows owners of other Sherline machines to swap the headstock and motor/speed control from one machine to the ball screw mill in approximately 60 seconds. This package offers savings compared to the price of our full ball screw mills.

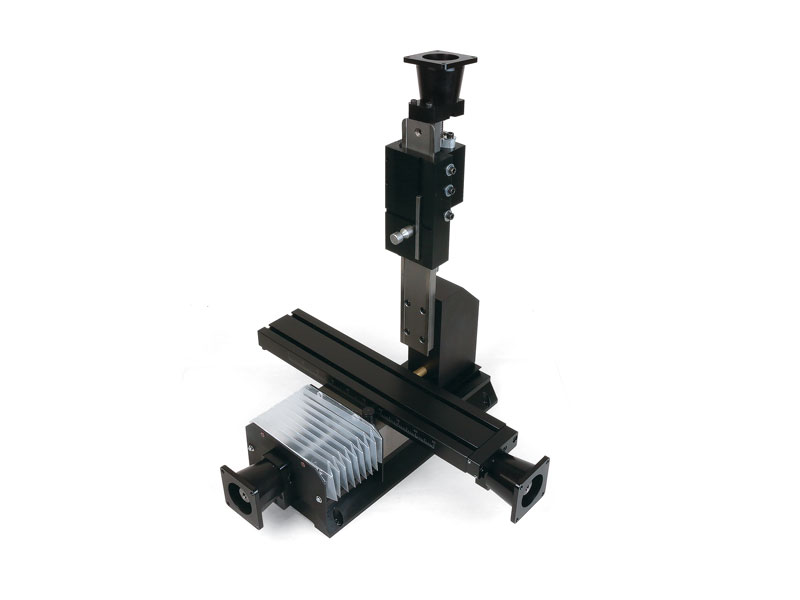

This 12″ XYZ base is the same base used in our 5400-series mill but has been modified for use with ball screws. It has a 12″ base with stepper motor mounts installed on the X-, Y- and Z-axes ready for the installation of stepper motors, and laser engraved table and base. (Stepper motors not included, see the STEPPER MOTOR page.)

*NOTE: CNC-ready machines cannot be operated manually unless double-shaft stepper motors are installed.

Standard equipment for the XYZ base:

  • 12″ Mill Base
  • Electroless nickel/Teflon coated mill saddle
  • 11″ Column Bed. Option to upgrade to 15″ Extended Column with nickel/Teflon plating
  • 13″ Mill Table
  • Stepper-motor mounts with high-torque couplings
  • The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.* 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes. Each handwheel has laser engraved aluminum handwheel collars
  • Oil reservoirs on the X/Y axes and the Z-axis to help keep critical parts lubricated.
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew
  • Accordion way cover
  • Travel: X=8.65″ (220 mm), Y= 5.0″ (127 mm), 4.85″ (123.19 mm)

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF Assembly and Instruction Guide

Instructions PDF Download

Download PDF 5201 Instructions

Instructions PDF Download

Download PDF 6854 Exploded View

Instructions PDF Download

Download PDF Ball Screw Mill Unpacking and Assembly Notice

Instructions PDF Download

Download PDF 5920/5958 Ball Screw Way Cover Instructions

Instructions PDF Download

Download Lubrication for Ball Screw Machines PDF

Instructions PDF Download

Download Ball Screw Lubrication PDF

Instructions PDF Download

Travel, “X” Axis 7.8” (198.1mm)
Travel, “Y” Axis 5.00″ (127mm)
Travel, “Z” Axis Standard 11″ bed: 4.85″ (123 mm); Optional 15″ bed 8.85″ (225 mm)
Width Overall 15.375″ (340 mm)
Depth Overall Base footprint: 14.375″ (365 mm); With fully extended brass leadscrew cover: 17.25 (438 mm)
Height Overall (Max.) Standard 11″ bed: 17.625″ (448 mm); Optional 15″ bed: 21.625″ (549 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Shipping Weight 50 lb. (22.73 kg)
For optimal performance, we recommend using the High-Torque Stepper Motors with our Ball Screws.
