14″ 8-Direction Benchtop Mill Package A – CNC Ready

-

Unlock advanced machining capabilities with the Sherline 2000A CNC/2010A CNC-Ready Deluxe 8-Direction Mill Package. This complete set features essential accessories and multi-directional precision, making it ideal for both hobbyists and professionals tackling intricate projects.

Clear selection
    Reset options
SKU: N/A Category: Tags: ,

Product Description

About the Sherline CNC-Ready 8-Direction Benchtop Mill

Our CNC-ready benchtop mill is perfect for the customer looking for a mini CNC milling machine to make small, precision parts. The deluxe 8-direction milling machine offers the most versatility of any Sherline mill. In addition to X-axis, Y-axis, and Z-axis travels, there are five additional directions that the headstock spindle can be positioned to do drilling or milling on your part from virtually any angle.

All our CNC milling machines are made in the USA, and our customer service is second to none. Although our machines are small, they can produce high-quality precision parts. Our CNC mill will not only cut wood and plastic but is also rigid and accurate enough to cut aluminum and steel parts. This mill is a desktop-size machine with full-size machine precision and accuracy.

Sherline CNC-ready mills have factory-installed stepper motor mounts in place of the handwheels and are ready to apply stepper motors and computer numeric controls (CNC). CNC-Ready milling machines are not turn-key machines and cannot be used until stepper motors have been installed. All milling machines that are described as “CNC-ready” have stepper motor mounts but do NOT include stepper motors, computer, or CNC software.

Sherline recommends using dual-shaft stepper motors so that handwheels can be applied to the rear shaft for manual control. With that in mind, handwheels for each axis are included with the machine, although you can’t use them until you install stepper motors. Sherline offers high-quality stepper motors and CNC options.

You can also find several aftermarket suppliers for motors, drivers, and software to complete the CNC system. You supply the 486 or better computer. See our CNC Dealers page for a list of suppliers and links to their home pages.

Notes on ordering a metric mill

Most of our cutting tools, like center drills, are manufactured in a fractional size. If you have a metric machine with metric holders, like collets or end mill holders, you will need to order fractional holders to accommodate our cutting tools.

Standard equipment for the CNC-Ready 8-Direction Benchtop Mill includes:

  • A powerful 90V DC motor with electronic speed controller
  • 14″ base
  • The handwheels are included and can be mounted to the end of the stepper motors to maintain manual control when needed.* 2-1/2″ (63mm) adjustable “zero” handwheel on the Z-axis and 2″ (51mm) adjustable “zero” handwheels on the X- and Y-axes. Each handwheel has laser-engraved aluminum handwheel collars
    *NOTE: CNC-ready machines cannot be operated manually unless double-shaft stepper motors are installed.
  • 22.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots
  • ¼” Drill Chuck w/ key, #1 Morse arbor with drawbolt
  • 2″ column riser block
  • Laser-engraved scales on the base and table
  • Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
  • Oil reservoirs on the X/Y axes and the Z-axis help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew

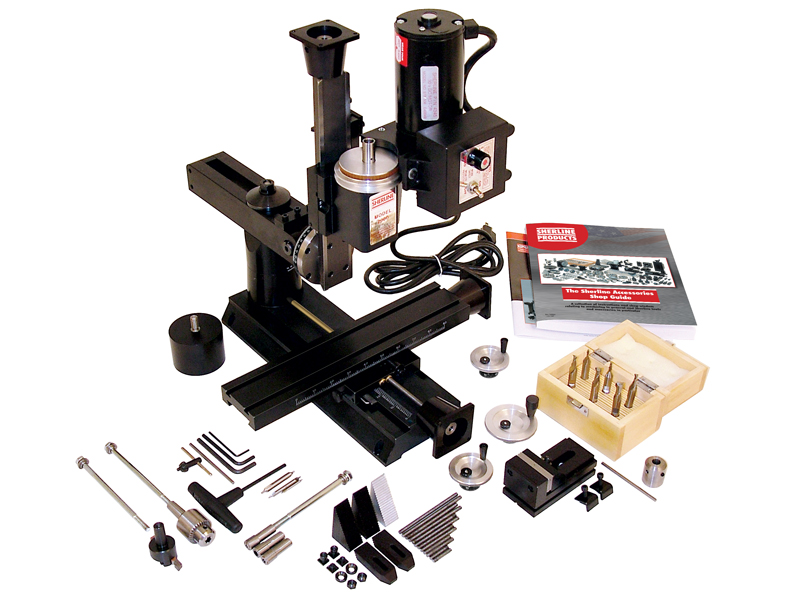

The A Package Includes:

  • Step block hold-down set
  • 5/32″ Sherline hex T-driver
  • 3-piece center drill set
  • Fly cutter w/carbide bit
  • 3-piece mill collet set w/drawbolt
  • 6-piece 3/8″ 2-flute double-ended end mill set (P/N 7401 7401 4-flute set may be substituted depending on availability)
  • 3/8″ end mill holder
  • Milling vise
  • Sherline Accessories Shop Guide

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF Assembly and Instruction Guide

Instructions PDF Download

Download PDF 2000/2010 Mill Set-up Instructions

Instructions PDF Download

2000-series Mill Z-axis Installation instructions

Instructions PDF Download

Download PDF 14″ Mill Base Dimensions

Instructions PDF Download

Download PDF Mill Saddle Lubrication instructions

Instructions PDF Download

Max clearance
(table to spindle)
9.00″ (229 mm)
Throat
(no spacer)
Adjustable
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 7.00″ (178 mm)
Travel, “Z” Axis 5.38″ (137 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 15.00″ (381 mm)
Depth Overall* Base footprint: 16.25″ (413 mm); With fully extended brass leadscrew cover: 20.625″ (524 mm)
Height Overall (Max.)* 23.38″ (568 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 45 lb. (20.1 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Column rotation (90° left/right)
Column pivot (90° forward/back)
Column swing (90° left/right)
Column travel (in/out) 5.5″ (140 mm)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Click on the link for the exploded view of the 2000-CNC/2010-CNC CNC-Ready Mill to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the files.
2000 CNC-Ready 3D IGS model
You need an IGS viewer to open .igs files. CLICK HERE to download a FREE IGS viewer.

5000 (5100) Mill 5400 (5410) Mill 5800 NexGen Mill
5000 (5100) 5400 (5410) 2000 (2010) 5800 (5810)
Max. clearance
(table to spindle)
8.00″ (203 mm) 8.00″ (203 mm) 9.00″ (229 mm) 14.00″ (356 mm)
Throat (no spacer) 2.25″ (50 mm) 2.25″ (50 mm) Adjustable Adjustable
Throat (w/ headstock spacer) Optional 3.50″ (90 mm) Adjustable Adjustable
Travel: X-axis (with stop) 8.65″ (220 mm) 8.65″ (220 mm) 8.65″ (220 mm) 13.65″ (347 mm)
Travel: Y-axis 3.00″ (76 mm) 5.00″ (127 mm) 7.00″ (178 mm) 11.00″ (279 mm)
Travel: Z-axis 6.25″ (159 mm) 6.25″ (159 mm) 5.38″ (137 mm) 9.38″ (238 mm)
Hole through spindle .405″ (10 mm) .405″ (10 mm) .405″ (10 mm) .405″ (10 mm)
Spindle nose thread 3/4-16 T.P.I. 3/4-16 T.P.I. 3/4-16 T.P.I. 3/4-16 T.P.I.
Spindle nose taper #1 Morse #1 Morse #1 Morse #1 Morse
Spindle runout of Morse taper .0005″ or less .0005″ or less .0005″ or less .0005″ or less
Handwheel graduations .001″ (.01 mm) .001″ (.01 mm) .001″ (.01 mm) .001″ (.01 mm)
Handwheel Type Standard Handwheels Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels) Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels) Zero Adjustable Handwheels (With the exception of DRO machines which come with DRO handwheels)
Electronically controlled
spindle speed range
70 to 2800 RPM 70 to 2800 RPM 70 to 2800 RPM 70 to 2800 RPM
Width overall 14.75″ (375 mm 15.00″ (381 mm) 15.00″ (381 mm) 20.00 (508 mm)
Depth overall 11.75″ (298 mm) 14.00″ (356 mm) 22.25″ (565 mm) 23.13″ (588 mm)
Height overall (Max.) 20.75″ (527 mm) 20.75″ (527 mm) 23.38″ (568 mm) 24.50″ (622 mm)
Table size 2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 13.00″
(70 mm x 330 mm)
2.75″ x 18.00″
(70 x 457 mm)
Hold-down provision 2 T-slots 2 T-slots 2 T-slots 3 T-slots
Shipping weight 33 lb (15.0 kg) 36 lb (16.3 kg) 38 lb (17.2 kg) 50 lb. (22.7 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Headstock rotation
(90° L/R)
Column rotation N/A N/A (90° L/R) N/A
Column pivot N/A N/A (90° Fwd/Bk) (90° Fwd/Bk)
Column swing N/A N/A (90°L/R) (90°L/R)
Column travel N/A N/A (In/Out) 5.5″ (140 mm) (In/Out) 5.5″ (140 mm)
Motor Specs
Input voltage 100 to 240 VAC, 50 or 60 Hz
Output to motor 90 VDC
Current draw .5 to 15 amps depending on load
No-load output shaft speed 6000 RPM (no pulley)
Click here for more detailed specs
Spindle Specs
Spindle End play (factory
adjustment of preload)
.0002″ (.005 mm) or less, normal pulleys
Runout at nose .0005″ (0.013 mm) or less
Bearings Two 20 mm lifetime lubricated ball bearings with adjustable preload
