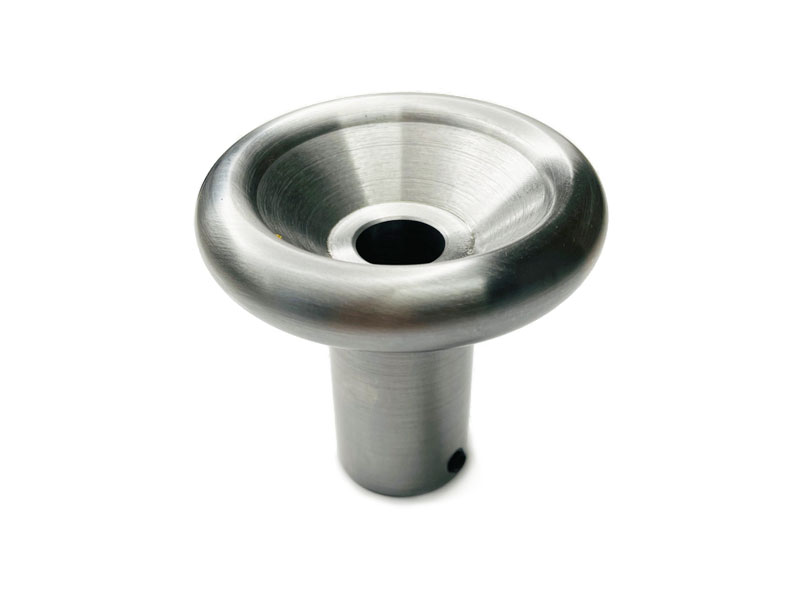

DRO Spindle Handwheel

-

SKU: 2049-DRO Category:

Product Description

About the DRO Spindle Handwheel

The spindle handwheel was designed to make the task of controlling the spindle easier. With it, you can quickly stop the spindle or turn it by hand to tap a thread or inspect a part. This version has a longer shaft to prevent interference with the DRO RPM sensor.

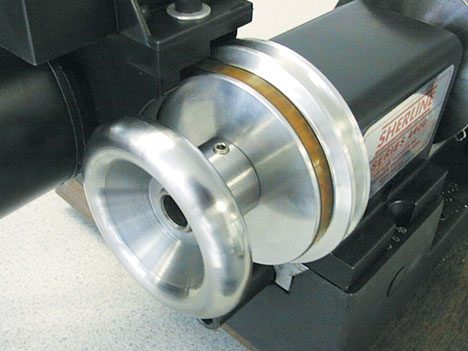

The handwheel mounts on the end of the spindle shaft and looks and works much like a sewing machine handwheel. It allows the operator to quickly and safely stop a rotating spindle by hand. It also makes it easy to hand index the spindle when working on a part. A black oxide finish was not used because the smooth, machined surface offers a better feel on your hand.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 2049 Instructions

Instructions PDF Download

Handwheel Material 12L14 Steel
Handwheel Diameter 2.5″
Part No. Description Quantity
20490-DRO/th>

Handwheel Body *Not sold separately 1
20491 10-32 x 1/4″ Cone Point Set Screw 1
