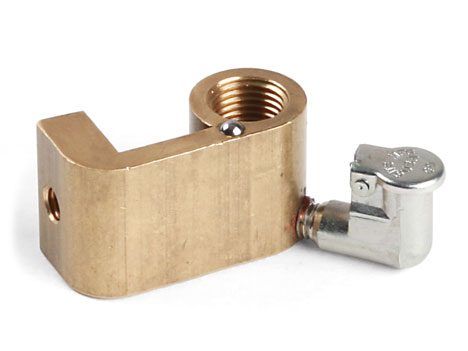

Mill Z-Axis Saddle Nut with Oiler

-

Clear selection
Prop 65 Warning
SKU: N/A Category:

Product Description

In keeping with our goal to make all accessories and improvements compatible with existing machines, any older Sherline mill can be upgraded to add the new Z-axis saddle nut with oiler by purchasing this upgrade kit, which includes the oiler and a new saddle nut.

All Sherline mills now include oil reservoirs on the X/Y axes and the Z axis to help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 4017U Instructions

Instructions PDF Download

22630 0.015″ Compression Spring
40174 Locking Saddle Nut W/Hole (P/N 41174 Metric)
40175 Mill Saddle Locking Lever (P/N 41175 Metric)
40178 Locking Saddle Nut Ball Bearing
40165 Oiler Body
