Mill X and Y-Axis Backlash Upgrade

-

Clear selection
Prop 65 Warning
SKU: N/A Category:

Product Description

In 1997 the old pointer style lock that adjusts backlash on the mill X- and Y-axis leadscrews was replaced with a star gear type lock to make adjustment easier. With the advent of CNC (Computer control) there has been an increased demand for reduced backlash settings. To serve this purpose, the size of the teeth on the star gear have been reduced to give a tighter fit and remove play from the backlash nut.

All new Sherline machines after 6/04 include these revised star gear backlash nuts and locks, but they can be retrofitted to any Sherline mills made after 1997 when the old pointer lock system was phased out. It will not replace the pointer system as the hole centers for the lock are different.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 5011U Instructions

Instructions PDF Download

Download PDF Removing the Slide Screw Insert Nut when the Internal Threads Are Gone Instructions

Instructions PDF Download

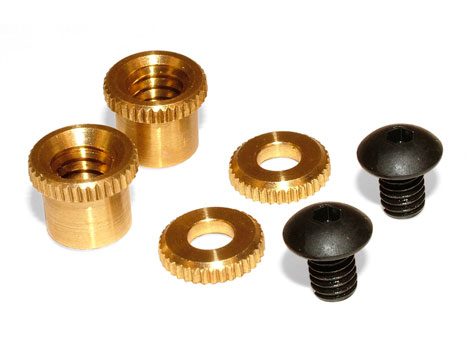

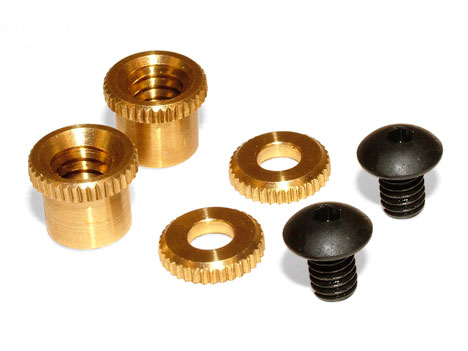

Part No. Description Qunatity
50130 Back Lash Nut, X-Axis (P/N 51130 Metric) 1
50140 Back Lash Nut, Y-Axis (P/N 51140 Metric) 1
50150 Anti-Backlash Lock (10/98) 2
50211 8-32 X 1/4″ Button Skt Screw 2
