18″ NexGen Benchtop Mill XYZ Base

-

Clear selection

  • *Options

    Reset options
Prop 65 Warning
SKU: N/A Categories: , Tag:

Product Description

Purpose of the Sherline Benchtop Mill XYZ Bases

The Sherline vertical mill can be purchased without the headstock and motor/speed control. This allows lathe owners to swap the headstock and motor/speed control from their lathe to the mill in approximately 60 seconds. This package offers savings of about 28-30% when compared to the price of our standard mill.

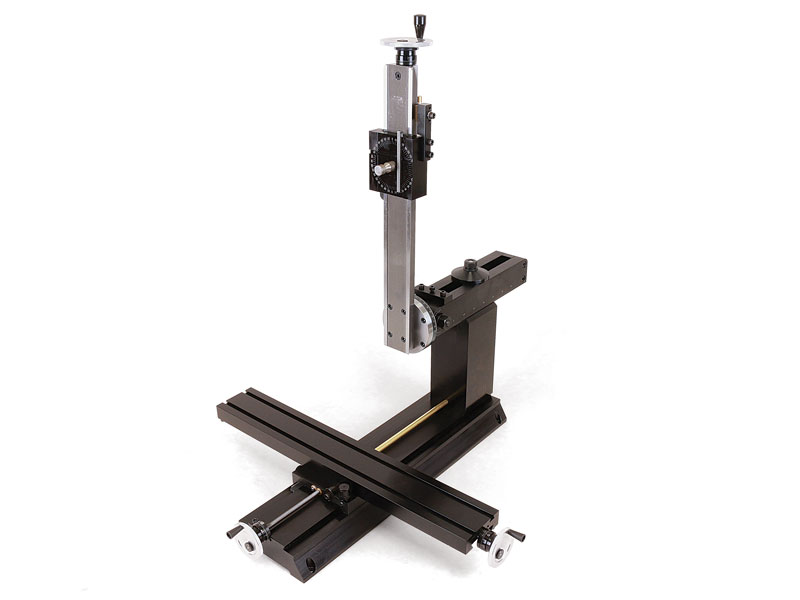

The NexGen Benchtop Mill XYZ base is the same base used in our NexGen Benchtop mill.

Standard features of the Benchtop Mill XYZ Base:

  • Extra-Rigid Column Base
  • 15″ Extended Column Bed
  • 18″ Extended Mill Table
  • 18″ Mill Base
  • Travel: X=13.65″ (347 mm), Y= 11.0″ (279 mm), Z=9.38″ (238 mm)

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 5201 Instructions

Instructions PDF Download

XYZ Base Comparison Chart
P/N (inch/metric) NAME WEIGHT TRAVEL
5201/5211 Mill XYZ base (10″ 5000-series) 26 lbs. X=9.0″ (228mm), Y= 3.0″ (76mm), Z=6.25″ (159mm)
5201-CNC/5211-CNC CNC-ready Mill XYZ base (10″ 5000-series)) 27 lbs. X=9.0″ (228mm), Y= 3.0″ (76mm), Z=6.25″ (159mm)
5230/5235 Mill XYZ base (5000-series w/adjustable handwheels) 26 lbs. X=9.0″ (228mm), Y= 3.0″ (76mm), Z=6.25″ (159mm)
5420/5430 Mill XYZ base (12″ Deluxe 5400-series) 27 lbs. X=9.0″ (228mm), Y= 5.0″ (127mm), Z=6.25″ (159mm))
5420-CNC/5430-CNC CNC-ready Mill XYZ base (12″ 5400-series) 28 lbs. X=9.0″ (228mm), Y= 5.0″ (127mm), Z=6.25″ (159mm)
5625/5630 Mill XYZ base (14″ Deluxe, 8-direction 2000-series) 34 lbs. X=9.0″ (228mm), Y=7.0″ (178mm), Z=5.38″ (137mm)
5625-CNC/5630-CNC CNC-ready Mill XYZ base (14″ 2000-series) 35 lbs. X=9.0″ (228mm), Y=7.0″ (178mm), Z=5.38″ (137mm)
5825/5830 Mill XYZ base (18″ NexGen 5800-series) 40 lbs. X=13.65″ (347 mm), Y= 11.0″ (279 mm), Z=9.38″ (238 mm)
5825-CNC/5830-CNC CNC-ready Mill XYZ base (18″ 5800-series) 41 lbs. X=13.65″ (347 mm), Y= 11.0″ (279 mm), Z=9.38″ (238 mm)
3580 Deluxe Multi-Direction Column Assembly (P/N 3585 Metric)
5600 Multi-Direction XY Base Assembly (P/N 5610 Metric)
40550 Hex Key 5/32”
40570 Hex Key 3/32”
