5/8″ Rear Side Multi-Tool Holder

-

Tools not included, shown for reference only

SKU: 5942 Category:

Product Description

About the 3/8″ Rear Side Multi-Tool Holder w-5/8″ Bore

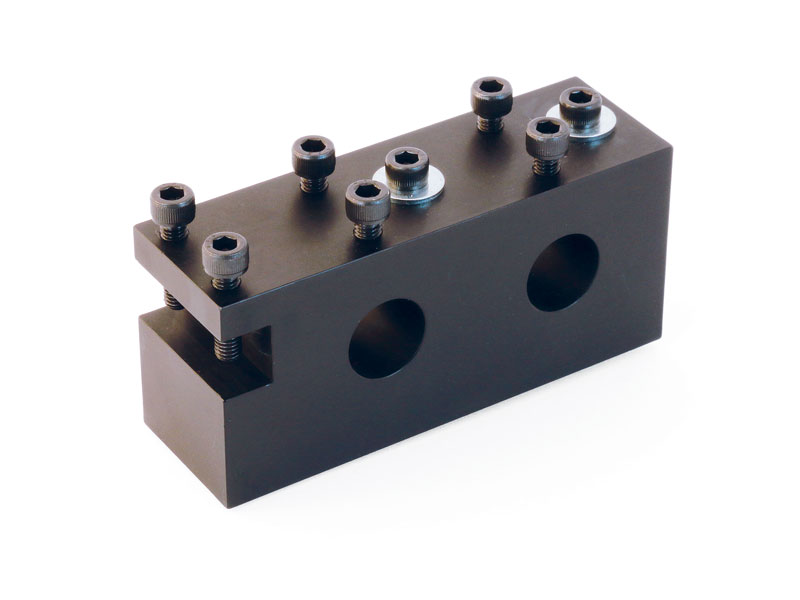

The rear side, multi-tool holder, was designed to complement our four-position, gang-tooling tool posts. It can be used in conjunction with the gang-tooling tool post or on its own for our customers who want to convert their Sherline lathe into a “Chucker Lathe” or gang-tooling lathe.

The rear-mount tool holder is slightly taller than its front-side counterpart, P/N 5937, allowing the tool to be mounted upside down and used on the backside of the crosslide. The round holes are for holding ER16 collet holders with a 5/8″ shank.

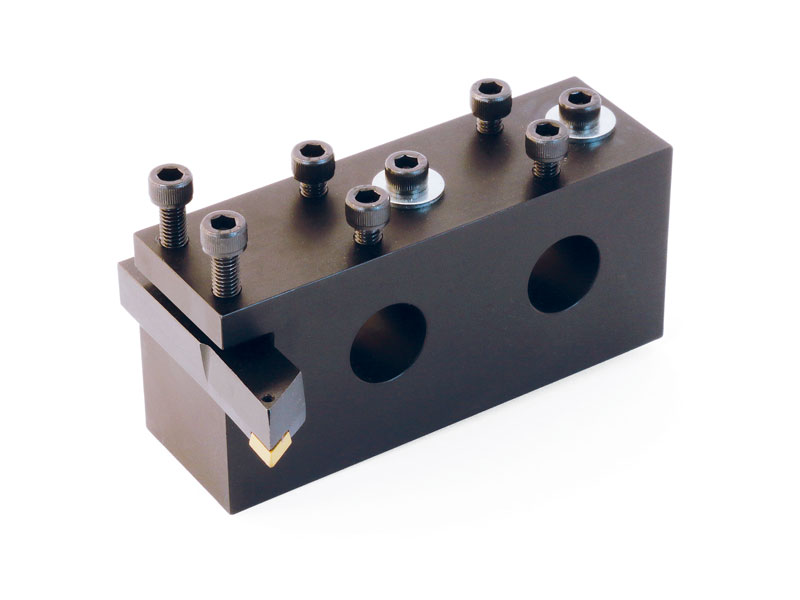

Our rear-side, multi-tool holder offers a convenient and accurate way to hold up to two ER16 collet holders with a 5/8″ shank with a known center-line-to-center-line distance of 1.500″ and a slot to hold 3/8″ square carbide tool holders on the “back” side of the part for turning, grooving, or threading tools.

We also offer a rear-side, multi-tool holder for customers who want to use 3/8″ round boring tools.

For video instructions on “Indicating in Your Gang-Tooling Tool Post,” click on the Video tab above or visit our Videos page.

Includes the following:

  • 5/8″ Rear Side, Multi-Tool Post Body
  • 10-32 x 1-1/8″ SHCS (2)
  • Extended Tool-Post T-Nut (2)
  • 10-32 x 3/4″ SHCS (6)
  • #10 Washer (2)

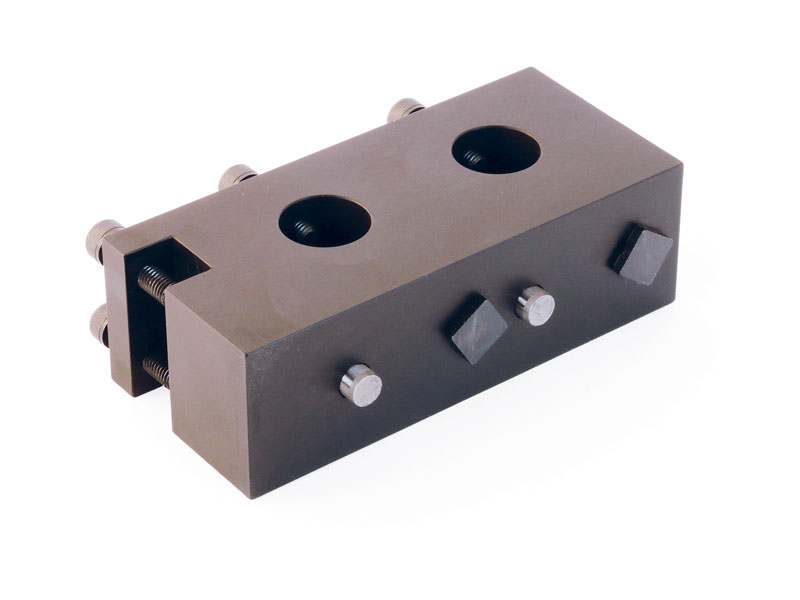

  • Steel Dowel Pin 1/4″ x 3/4″ (2)

Considerations Regarding this Tool Holder and Its Possible End Uses

There are many considerations regarding this tool post and its possible end uses. Please check the instructions for a complete list (click on the Instructions tab above to download the document).

A Note on Parting off Thin Parts

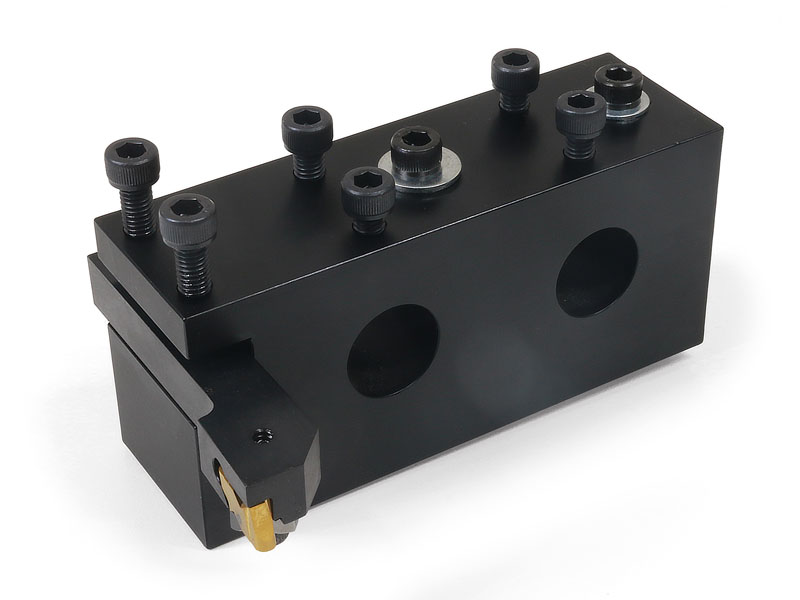

For parting off thin-wall parts (wall thickness under .100″ (2.54 mm)), we recommend using the Threading/Grooving Carbide Insert Tool Holder (P/N 2267) with a .031 or .062 groove insert, holding the tool upside down on the rear side of the part. Use this tool instead of our cutoff blade and holder. The insert tool holder is more rigid than a cutoff blade, and the carbide insert will last much longer.

Available Gang Tool Posts

3/8″ Gang-Tooling Tool Post
Tools not included, shown for reference only
$86.19

-

Add to cart
3/8″ Front-Side Multi-Tool Holder
Tools not included, shown for reference only
$74.70

-

Add to cart
3/8″ Rear Side Multi-Tool Holder
Tools not included, shown for reference only
$78.15

-

Add to cart
5/8″ Rear Side Multi-Tool Holder
Tools not included, shown for reference only
$89.64

-

Add to cart
3/8″ Rear-Side Cutoff Multi-Tool Holder
Tools not included, shown for reference only
$86.19

-

Add to cart
5/8″ Gang-Tooling Tool Post
Tools not included, shown for reference only
$109.17

-

Add to cart
5/8″ Front-Side Multi-Tool Holder
Tools not included, shown for reference only
$86.19

-

Add to cart
5/8″ Rear-Side Cutoff Multi-Tool Holder
Tools not included, shown for reference only
$97.68

-

Add to cart

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 5932 Instructions

Instructions PDF Download

Indicating in your Sherline Gang-Tooling Tool Post

Insert Holder Tool Post
Tool Post Body Material Aluminum
Body Coating Black Anodized
Body Dimensions (H x W X D) 1.7″ x 3.764″ x 1.1875″
Tool Holes 1.5″ between centers
Part No. Description Quantity
59360 5/8″ Rear Side Multi-Tool Post Body 1
40780 10-32 x 1-1/8″ SHC Screw 2
40250 Extended Tool-Post T-Nut 2
40690 10-32 x 3/4″ SHC Screw 6
40660 #10 Washer 2
59303 Steel Dowel Pin 1/4″ x 3/4″ 2
