Mill DRO without Readout Box

-

Select the inch/metric option to match the DRO handhweels to your machine’s leadscrew pitch. All ball screw machines use a metric pitch.

Clear selection
  • *Select screw type

    Select the screw type in the check boxes below to receive the correct DRO Tachometer Pickup Decal for your machine.

    Reset options
SKU: N/A Categories: , Tag:

Product Description

About the Mill Digital Readout without Electronics Box

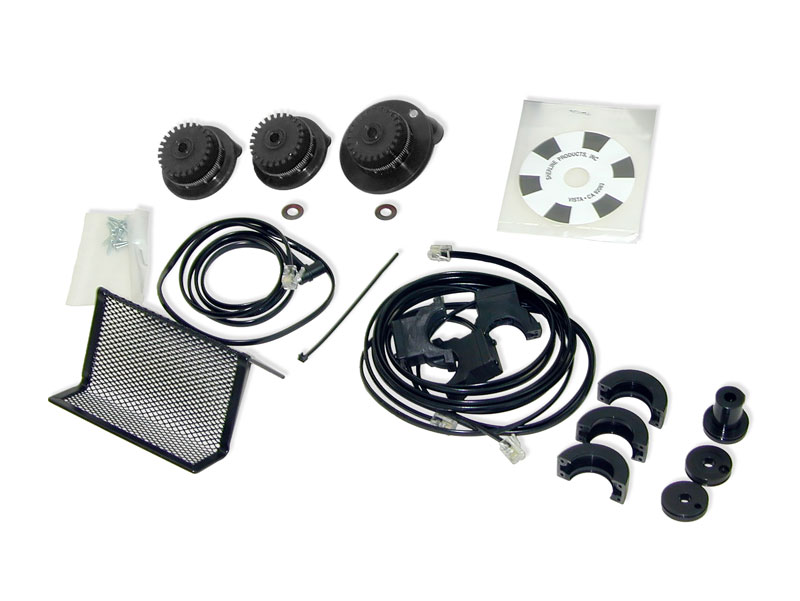

This kit was developed for those who already have a digital readout installed on their lathe and wish to add a DRO to their mill without duplicating the electronics box. This cost-saving measure allows you to switch the box back and forth between the mill and lathe.

NOTE: The DRO can be ordered on any new machine as a factory installed option. The digital readout handwheels replace the standard handwheels that would normally come with the machine. If you purchase a machine with factory installed DRO, the regular handwheels are not included. If you purchase the DRO as a separate option and install it yourself, you will have the stock handwheels left over.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 8100 Instructions

Instructions PDF Download

81320 DRO X-Axis Handwheel
81330 DRO Y-Axis Handwheel
81350 Z-axis thrust collar
81340 DRO Z-Axis Handhweel Assembly (P/N 81342 metric)
81100 Encoder Units (Tested) w/Cable
81300 (2) DRO X/Y-Axis Thrust Collar
81508 DRO Lead Screw Thrust
81500 DRO Tachometer Encoder w/Cable
81510 6-pulse DRO Tachometer Pickup Decal (leadscrew machines only)
68060 5-pulse DRO Tachometer Pickup Decal (ball screw machines only)
81080 (3) Black Tie 4″ Wrap
