36V Closed-Loop Stepper Motor

-

Prop 65 Warning
SKU: 87140 Categories: , Tag:

Product Description

About the 36V Stepper Motor

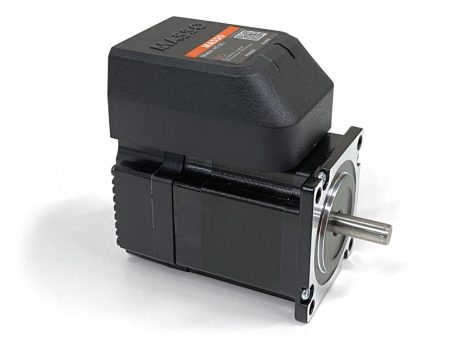

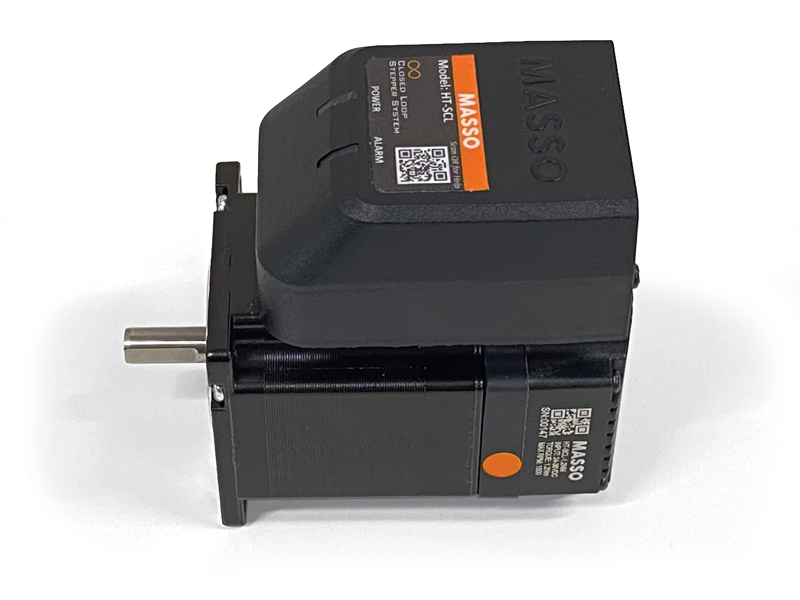

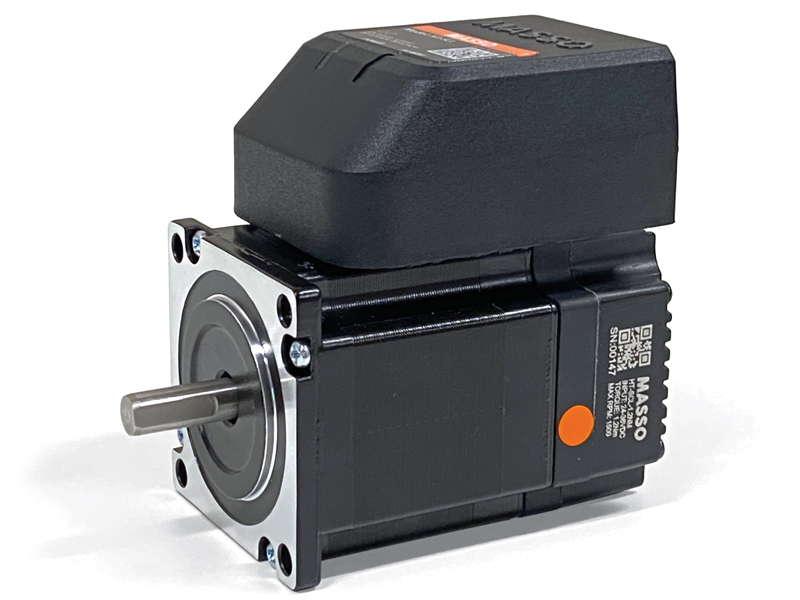

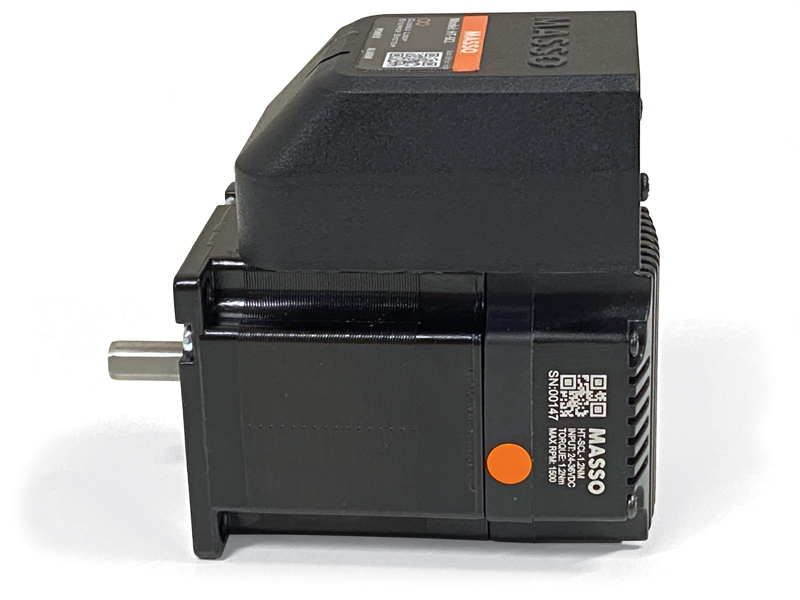

The 36V stepper motor is a closed-loop motor with an integrated drive and has the same NEMA #23 frame as our standard stepper motor. The motor provides visual LED indications for both power and alarm status.

ATTENTION: The 36V, closed-loop stepper motors are only sold as replacement parts for our Accu-Pro machines and not as an upgrade option for pre-existing machines.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.
Download PDF Sherline/MASSO 36V Closed-Loop Stepper Motor Specifications
Instructions PDF Download
Frame size NEMA #23
Shaft 8mm (.315″)
Maximum Torque 1.2 N.m (Newton meters)
12.236 kg-cm (kilogram centimeter)
169.934 oz/in (ounce inch)
10.62 in/lb (inch pound)
Maximum RPM 530 RPM
Input Voltage 36V DC
Output Current 4.5A 20 KHz PWM
Current 2 A
Step Angle .9° (400 steps/rev)
Pulses/Revolution 800

Download PDF Sherline/MASSO 36V Closed-Loop Stepper Motor Specifications
Instructions PDF Download
