Accordion Way Cover Set for NexGen Mill

-

Compatible with the NexGen mill only

In stock

SKU: 5816 Categories: ,

Product Description

About the Mill Accordion Way Cover Set for the NexGen Mill

The way cover set for the 5800 NexGen mills was designed to cover the larger 18″ base of the Y-axis. Both the front and backside covers utilize double accordions for the longer base, while an additional aluminum plate is sandwiched between the two covers. This additional plate helps to keep the covers from arching up when the mill table is pushed toward either end of the Y-axis (either handwheel end or mill column end).

The way cover material is made of polypropylene. It is durable and resilient enough to better withstand the temperature of hot chips. The material itself is 10 mil (mil=0.001″).

The rear cover slips over the column. The front plate set is held in place with another spring that wraps under the stepper motor mount (CNC machines) or under the handwheel thrust collar (Manual machines). The two inner plates are held against the saddle using two 4″ long 10-32 bolts. A longer saddle lock thumbscrew is also provided to give your fingers room for adjustment with the long bolts in place. Complete, illustrated step-by-step instructions are included, and installation takes only a few minutes.

NOTE: This Y-axis cover was designed to work on Sherline machines. They were not designed to work with any aftermarket parts such as limit switches, stops, etc.

What is included:

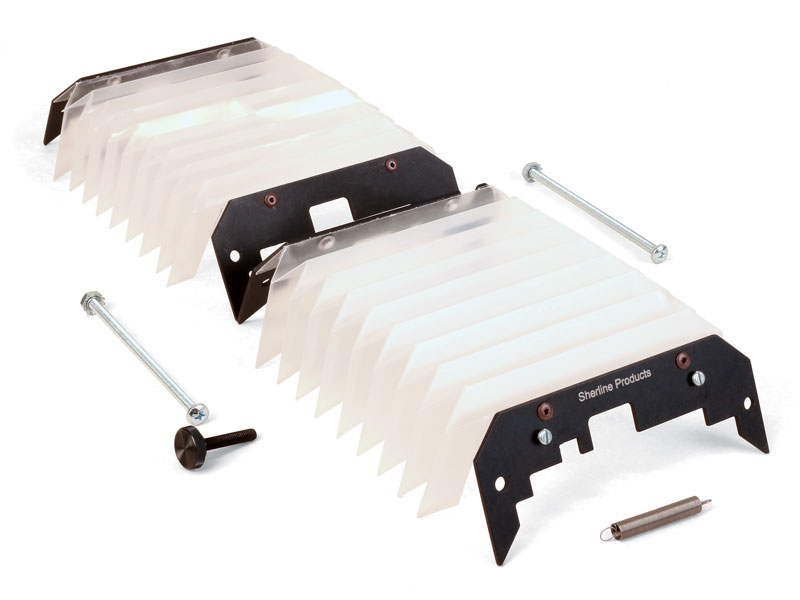

Front and rear cover sets have the accordion plastic covers already riveted in place. Included are the front and rear cover set, two attachment bolts and locking nuts, two attachment springs (one already attached to the rear cover set, and an extra-long saddle lock thumbscrew).

CAUTION: The way covers will not work if you have done any customization to the mill base ways, such as adding sensors. They cannot slide over any impedance that you may have added.

The P/N 5816 way cover set bolts right onto your Sherline NexGen mill requiring no holes to be drilled. (machine not included). Click on the image for a larger view.

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF 5090 Instructions

Instructions PDF Download

31090 (4) #6 x 3/16″ Pan Head Type F self-threading screws
50901 Way Cover Rear Mounting Plate
50902 Way Cover Rear Saddle Mounting Plate
50903 Way Cover Front Saddle Mounting Plate
50904 Way Cover Front Mounting Plate
50905 (4) Polypropylene Folded Accordion Way Covers
50906 Way Cover Front Spring
50907 Way Cover Rear Spring
50908 (2) 10-32 x 4″ Pan Head Phillips Screw
50909 (2) 10-32 Nut with Star Washer
50912 Extra Long Saddle Lock Thumbscrew
