1010 0JT 5/32″ Headstock Drill Chuck

$73.50

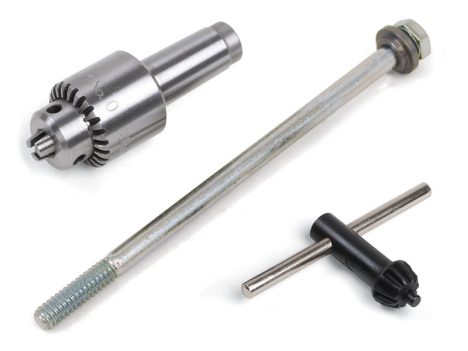

Zero Jacobs Taper 5/32″ Drill Chuck plus chuck key, drawbolt and washer included.

Buy product

Product Description

These chucks are designated “0JT” which stands for “Zero Jacobs Taper,” because it comes with a #0 Jacobs tapered hole in the back. Into that, we have pressed a special arbor that provides a #1 Morse taper to fit into the Sherline headstock. A chuck key plus a drawbolt and washer are included with P/N 1010 to secure the chuck in position.

These chucks are useful for holding very small drills and their shorter length provides an increase of about 1/2″ in working space between centers compared to the 1/4″ drill chuck.

Runout, as specified by the manufacturer, is .004″ or less but we try to maintain .003″ or less in our testing process. If runout of less than .003″ amount is required, collets should be used to hold the drill rather than a chuck.

NOTE: Because the arbor is pressed into the chuck, it is not interchangeable from chuck to chuck. A separate chuck must be purchased for #0 and #1 Morse use.

Other Purchasing Options:

1015 5/32″ Drill Chuck with #0 Morse Arbor



warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Instructions

Instructions PDF Download

P/N 1010
Chuck Capacity 5/32″ (4 mm) – #80 (.0135″ or .34 mm)
Arbor #1 Morse for headstock
Runout .003″ or less
Includes chuck key, drawbolt+washer

P/N 1015
Chuck Capacity 5/32″ (4 mm) – #80 (.0135″ or .34 mm)
Arbor #0 Morse for tailstock
Runout .003″ or less
Includes chuck key

P/N 1010
10170 5/32″ chuck arbor, #0 Jacobs taper to #1 Morse taper
10180 chuck key, 5/32″ drill chuck
10190 drill chuck body
30880 1/4-20 x 5″ drawbolt with centering washer (for #1 Morse arbors)
P/N 1015
10160 5/32″ chuck arbor, #0 Jacobs to #0 Morse taper
10180 chuck key, 5/32″ drill chuck
10190 drill chuck body
