8658 CNC package

NexGen Ultimate CNC Machine Shop

-

Clear selection
  • Optional Chuck Upgrade
    Upgrade the 3.1" chuck that comes with the package to a different chuck
    Reset options
Prop 65 Warning
SKU: N/A Category: Tag:

Product Description

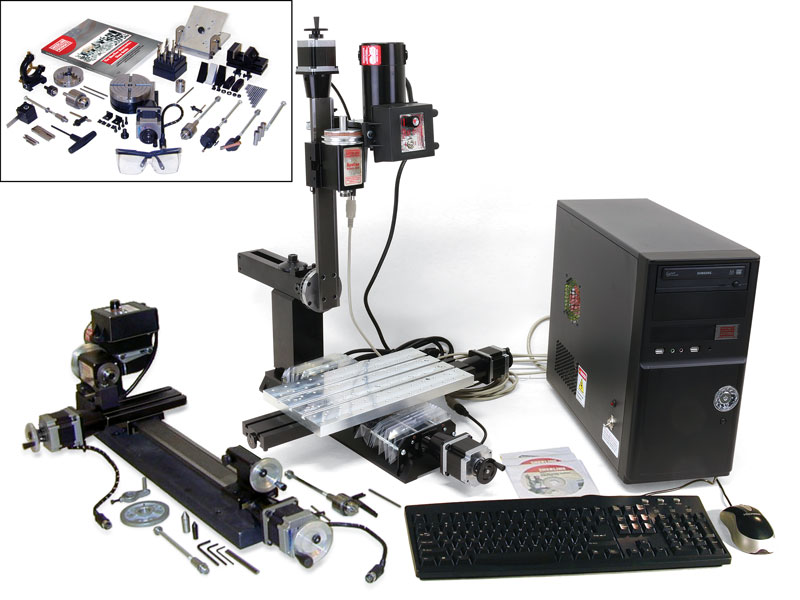

Sherline’s Ultimate CNC Machine Shop comes complete with a CNC-ready lathe and vertical milling machine, plus the stepper motors, computer, software, and cables to run them.

The NexGen Ultimate CNC Machine Shop system includes the following:

  • Deluxe 3.5″ x 17″ Benchtop Lathe with two stepper motors, in either inch or metric measurements
  • 18″ NexGen Benchtop Vertical Mill with three stepper motors, in either inch or metric measurements
  • Handwheels on the rear shafts of the stepper motors also allow manual control
  • Rotary table with stepper motor (for use as a 4th axis on the mill) and the computer
  • A computer with Ubuntu Linux-based OS with linuxcnc 4-axis CNC software preinstalled
  • Keyboard and mouse
  • 4-axis driver board and power supply installed inside the computer to run either the mill or lathe, one at a time
  • Computer cables to the X-, Y-, and Z-axes are 69″ in length
  • Instruction and utility CD. The CD includes complete instructions and several free utilities to translate CAD files or TrueType fonts into G-code.
  • A blank 4GB USB flash drive is also included
  • 1-year warranty on all components for non-production use. 90-day warranty on CNC and computer-related components.

You supply only a monitor.

NOTE: Depending upon availability, the actual computer supplied with the system may look different than shown above.

In addition to the lathe, mill, and computer, you get the following accessories:
17″ BENCHTOP LATHE

  • 3.1″ 3-jaw Self-centering Chuck
  • 3/8″ Drill Chuck w/ Arbors, Key, and Drawbolt
  • Steady Rest
  • Live Center
  • Rear Mount Cutoff Tool and Holder
  • 3-pc. 1/4″ HSS Tool Set (LH, RH, Boring)

18″ NEXGEN BENCHTOP MILL

  • Headstock Spacer Block
  • 3 pc. Center Drill Set
  • Fly Cutter w/ 1/4″ Carbide Cutting Tool
  • Boring Head
  • Boring Tool (5/16″ min. hole, 1″ max. depth)
  • 3-pc. Mill Collet Set w/ Drawbolt
  • 1/4″ Drill Chuck w/ #1 Morse Arbor, Key, and Drawbolt
  • 3/8″ End Mill Holder
  • 6-pc. 3/8″ Shank End Mill Set
  • Milling Vise
  • Step Block Hold-down Set
  • 4″ CNC Rotary Table with Stepper Motor
  • Tilting Angle Table

MISCELLANEOUS

  • 5/32″ Sherline Hex T-Driver
  • Sherline Accessories Shop Guide
  • Safety Glasses

Sherline CNC Specification Links

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF Assembly and Instruction Guide

Instructions PDF Download

Download PDF DRO Instructions

Instructions PDF Download

Max clearance
(table to spindle)		 14.00″ (356 mm)
Throat
(no spacer)		 Adjustable
Throat
(w/ headstock spacer)		 Adjustable
Travel, “X” Axis 13.65″ (347 mm)
Travel, “Y” Axis 11 ″ (279 mm); 8.9″ (226 mm) with tooling plate attached
Travel, “Z” Axis 5.38″ (137 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall 20.00 (508 mm)
Depth Overall Base footprint: 20.625″ (524 mm); With fully extended brass leadscrew cover: 27.875″ (708 mm)
Height Overall (Max.) 24.50″ (622 mm)
Table size 2.75″ x 18.00″ (70 x 457 mm)
Hold-down provision 3 T-Slots
Shipping Weight 50 lb. (22.7 kg)
Movements in addition to X-, Y- and Z-axes Headstock rotation 90° left/right
Column pivot 90° forward/back
Column swing 90° left/right
Column travel (in/out) 5.5″ (140 mm)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz. Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Swing Over Bed 3.50″ (90 mm)
Swing Over Carriage 1.75″ (45 mm)
Distance Between Centers 17.00″ (430 mm)
Hole Through Spindle .405″ (10 mm)
Spindle Nose Thread 3/4″-16 T.P.I.
Spindle Nose Taper #1 Morse
Spindle Runout of Morse Taper .0005″ or less
Travel of Crosslide 4.25″ (110 mm)
Tailstock Spindle Taper #0 Morse
Protractor Graduations 0° to 45° by 5°
Handwheel Graduations .001″ (.01 mm)
Length Overall 32.5″ (826 mm)
Width Overall 8.00″ (267 mm)
Height Overall 8.00″ (216 mm)
Shipping Weight 31 lb. (14.1 kg)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control
Max clearance
(table to spindle)		 9.00″ (229 mm)
Throat
(no spacer)		 Adjustable
Throat
(w/ headstock spacer)		 Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 7.00″ (178 mm)
Travel, “Z” Axis 5.38″ (137 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 15.00″ (381 mm)
Depth Overall* Base footprint: 16.25″ (413 mm); With fully extended brass leadscrew cover: 20.625″ (524 mm)
Height Overall (Max.)* 23.38″ (568 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 45 lb. (20.1 kg)
Movements in addition
to X-, Y- and Z-axes		 Headstock rotation (90° left/right)
Column rotation (90° left/right)
Column pivot (90° forward/back)
Column swing (90° left/right)
Column travel (in/out) 5.5″ (140 mm)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Click on the link for the exploded view of the 8440-Series CNC Lathe to help identify replacement parts.

Click on the link for the exploded view of the 8580/8581 CNC Deluxe Mill to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

If you are working with brass or wood, we suggest you use the toggle switch dust cover to protect the life of your motor & speed control.

The MASSO G3 CNC controller, power supply, stepper motors, cable system and optical encoder are sold as a part of our Accu-Pro line of machines and are not available for purchase separately or as an upgrade option to existing machines.
