5400-DRO/5410-DRO Deluxe Mill

$1,170.00

Vertical  Milling Machine (12″ base) + DRO (Digital Read Out).

Buy product

SKU: 5400-DRO/5410-DRO Categories: ,

Product Description

Any Sherline milling machine can be ordered with digital readouts factory installed. The installation includes special handwheels with built-in electronic encoders that replace the standard handwheels. (The standard handwheels are not included when the DRO option is ordered.) These special DRO handwheels are connected to an electronic readout box that translates the handwheel movement into a display of table travel for each of the three axes of movement. The readout for any axis can be reset to zero at any time with the push of a button. Spindle RPM is also constantly displayed on the box whenever the motor is running. The readout can be fitted to either inch or metric machines.

The display shows the position of each axis in relation to a zero point that you establish. Inch versions show position to three and a half decimal places or to within .0005″. Metric versions show position to within .01 mm. Backlash can be electronically eliminated by setting its measured value into the readout box for each axis. When handwheel rotation changes direction, the backlash value is electronically subtracted before the readout counts in the other direction.
The ease with which distance and direction can be kept track of with this system will add a new level of enjoyment to your machining. It also helps eliminate some of the tedious job of keeping track of handwheel revolutions and thereby helps eliminate errors.

NOTE: The unit does not translate dimensions from inch to metric. It must be initialized to work with the pitch of the leadscrew to which the handwheel is attached.

NOTE: The DRO was not designed to provide a closed-loop system when used in conjunction with CNC; however, it can be adapted to fit on the rear shaft of stepper motors for manual use. See the DRO on CNC page for installation instructions.

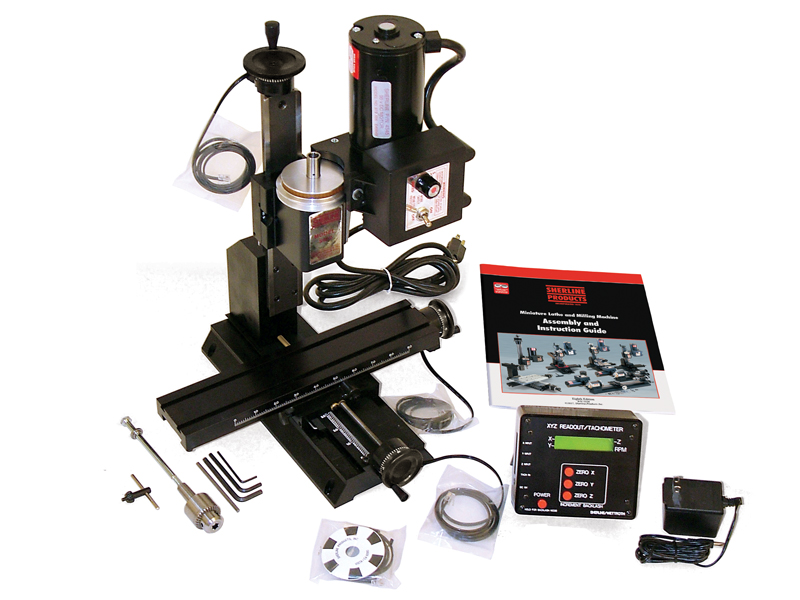

Standard equipment for the model 5400-DRO (5410 metric) mill includes:

  • A DRO display with power supply, and tachometer pickup decal
  • A powerful 90V DC motor with electronic speed controller
  • 12″ base
  • Special handwheels are supplied with DRO machines. These handwheels can be reset to zero electronically with the push of a button on the DRO display box. Sherline DRO mills are outfitted with the special DRO 2″ (51mm) handwheels on the Y-asix leadscrew and X-axis table feed screw, and a 2.5″ handwheel on the Z-axis vertical feed screw. Each handwheel has laser engraved aluminum handwheel collars
  • 2.75″ (70 mm) x 13.0″ (330 mm) table with two T-slots
  • Pulleys, drive belt, three hexagonal keys, spindle bars, gib removal tool, eight-foot three-wire power cord, and instruction manual
  • 1297 Headstock spacer block
  • 3072 ¼” Jacobs drill chuck w/ key, #1 Morse arbor with drawbolt
  • Available with red handwheels upon request

New Mill Features

  • Oil reservoirs on the X/Y axes and the Z axis to help keep critical parts lubricated. These were initially developed for CNC machines that run constantly for hours on end but can benefit manual machines as well
  • Brass leadscrew cover that keeps chips off the rear of the Y-axis leadscrew

Other Purchasing Options:

5400A/5410A Package
5400A-DRO/5410A-DRO Mill Package A
5400-CNC/5400-CNC CNC-Ready Mill
8540/8541 – Complete CNC Mill System

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

Max clearance
(table to spindle)
8.00″ (203 mm)
Throat
(no spacer)
Optional
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 5.00″ (127 mm)
Travel, “Z” Axis 6.25″ (159 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 15.00″ (381 mm)
Depth Overall* 14.00″ (356 mm)
Height Overall (Max.)* 20.75″ (527 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 40 lb. (18.2 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.
