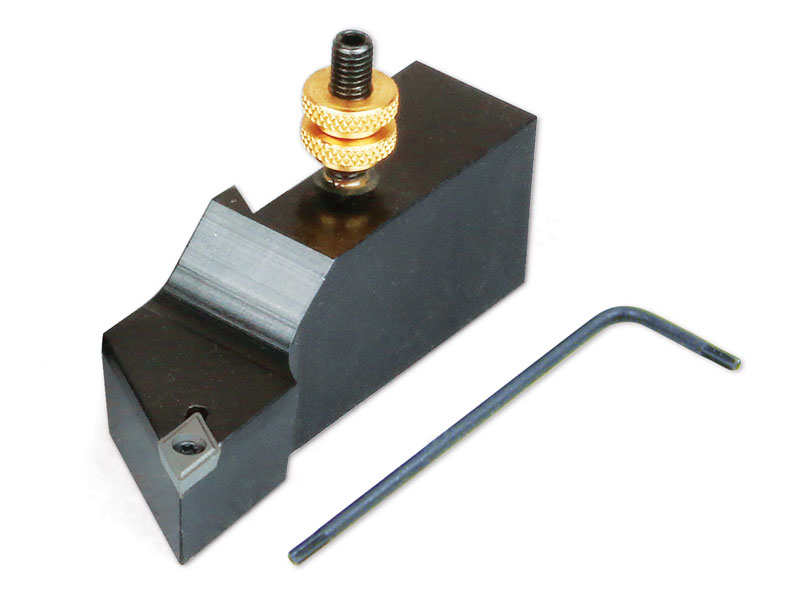

Quick-Change Carbide Insert Tool Holder
This holder is not included with the Quick-Change Tool Post System (P/N 2250) but is available separately for users who want to take advantage of the enhanced cutting performance offered by carbide tools. The holder includes one 55° carbide insert with two cutting edges, secured by a small screw. A Torx wrench for tightening the screw is also provided.
Like the Quick-Change Tool Post and other dovetailed holders in the system, this inserted tip holder is made from case-hardened steel with a black oxide finish for durability and corrosion resistance.
To learn more about the benefits of using inserted tip carbide tools, CLICK HERE to download a detailed PDF guide.
-
| Tool Post and Holders Body Material | Steel |
|---|---|
| Body Coating | Black Oxide |
2295 |
|
|---|---|
| 22550 | QC Carbide Insert-Holder Body |
| 22560 | 10-32 x 1″ Cup Point Set Screw |
| 22680 | QC Height Adjuster |
| 22580 | Torx T7 Wrench |
| 32100 | 10-32 Hex Nut |
| 7605 | 55-Degree Carbide Insert |
| 76232 | Torque Screw (Pt 542T) |
