Product Description

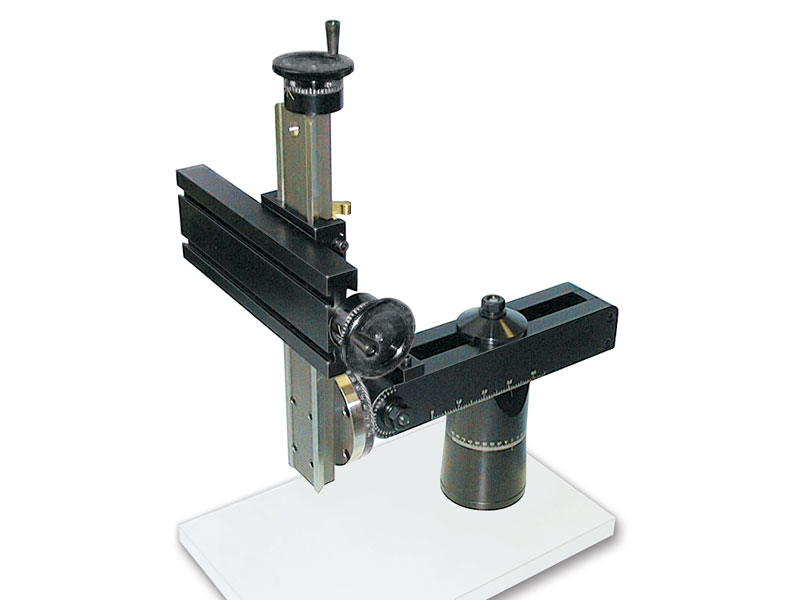

About the 6-Direction, 2-Axis Manual Machine Slide

  1. The slides are manufactured primarily from 6061-T6 aluminum and finished with a black anodizing. The slides that incorporate steel parts have ground dovetails.
  2. The table is 8″ x 2.75″, and any table is available with either an inch or metric leadscrew.
  3. The column is 11″ steel with ground dovetails with either an inch or metric leadscrew.
  4. Leadscrews are precision rolled from steel, and table screws are located under the table, out of the way of chips. Leadscrew backlash is adjustable.
  5. Dovetailed tables and saddles have adjustable gibs to eliminate play.
  6. Travel includes X- and Z-axis movements by handhweel, plus manual ram control for the column rotation, pivot, swing, and in/out travel.
  7. 2″ Industrial handwheels are graduated in .001″ increments on inch slides and in .01 mm increments on metric slides.

Mounting Provisions

FROM THE BOTTOM—Two 1/4-20 holes are provided in the base’s bottom located 1″ on either side of the center of the base for mounting.

FROM THE TOP—If access is not available from the bottom, the slide can be mounted from the top using the four provided angle clamps. They slide into the groove around the perimeter of the base, and holes are drilled in the mounting surface and tapped to accept the 10-32 socket head cap screws provided. Use all four clamps for the most secure mount.

Weight Capacity

Our slides’ weight capacity is about 10 lbs. depending on where the weight is located and how long the table is. On an 18″ table, you should not go more than 10 lbs. of weight at the end of the table (there is a leverage factor). If the weight is more centrally located (closer to the base), you can exceed the 10 lbs. limit.

Duty Cycle

Under heavy constant use, the dovetail area of the slide will start to show some wear on the anodize after one year (2080 hours). They are still fully functional at this point, but the anodized coating will begin to wear thin. The dovetail and the screw will last longer if you keep them lubricated with light oil*.

The leadscrews have a rolled thread which is hardened a bit by the rolling process. The backlash nuts are brass. The nut is the softer material, and therefore it is the part that wears out. The backlash nut is adjustable, so it can compensate for the wear until the threads are gone. You should get the same duty cycle (2080 hours) from the backlash nut before it will need to be adjusted or replaced.

*NOTE: Do not use WD40 as a lubricant on these slides. WD40 will remove the anodized coating from these parts!

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 6570 Instructions

Instructions PDF Download

Table size 2.75″ x 8″ (70 mm x 203.2 mm)
Column size 11″ (279.4 mm)
Travel
Z-axis 5.38″ (137 mm)
X-axis 4.25″ (108 mm)
Column rotation 90° L/R
Column pivot 90° Fwd/Back
Column swing 90° L/R
Column in/out travel 5.5″ (140 mm)
Hold-down provision 2 T-slots
Mounting provision 2 holes 1/4-20 in the bottom of the base plus slot for angle clamps
Handwheels 2″ laser-engraved aluminum with two pre-loaded ball bearings
Part No. Description Quantity
32140 10-32 x 1/2″ Cup Point Set Screw 1
35160 Graduated Clamping Ring 1
35170 Moveable Clamping Disk 1
40177 Saddle Nut w/ Ball 1
40175 Saddle Locking Lever 1
40330 10-32 x 5/8″ SHCS 3
40340 10-32 x 1″ SHCS 1
40520 10-32 x 3/16″ Cup Point Set Screw 2
40600 10-32 x 1/4″ Flat Point Set Screw 3
40670 10-32 x 1/2″ SHCS 4
40690 10-32 x 3/4″ SHCS 4
40820 Gib Lock 2
40890 (41890 Metric) Slide Screw Insert 1
40910 Saddle 1
40980 Gib, Crosslide 1
40990 Gib, Z-Axis 1
45030 Manual Column Bed 1
44210 (44220 Metric) 8″ Leadscrew 1
50211 8-32 x 1/4″ Button Head Screw 1
50220 1/4-20 x 1-3/4″ SHCS 2
56240 1/4-20 x 1-1/2″ SHCS 2
56130 Arm Hold-Down Bolt 1
56200 Arm Hold-Down Washer 1
56210 3/8-16 x 2″ Shouldered Bolt 1
56220 Swing Arm Side 1
56230 Flange Nut 2
56330 Swing Arm Side 1
56350 Column Adjustment Block 1
56400 Arm Spacer Block 1
56440 Arm Mount 1
56450 Index Tab 1
56470 3/32″ x 1/2″ Dowel Pin 1
56550 Column Top 1
56700 Column Base 1
67018 (67118 Metric) 2″ Industrial Handwheel 2
67019 Thrust Collar 2
67030 (67031 Metric) Z-Axis Leadscrew 1
67036 X-Axis 8″ Crosslide 1
67107 (67109 Metric) Preload Nut 2
67111 8-32 x 7/8″ Socket Head Cap Screw 4
67115 5-40 x 1″ Socket Head Cap Screw 2
67120 Ball Bearing w/ Flange 4

Click the P/Ns below to download a zipped version of the IGS 3D CAD file. You will need to extract the zip file before viewing the IGS file.
6570/6571 3D IGS model
You need an IGS viewer to view .igs files. CLICK HERE to download a FREE IGS viewer.
