Laser Tilting Angle Table with Stepper Motor

-

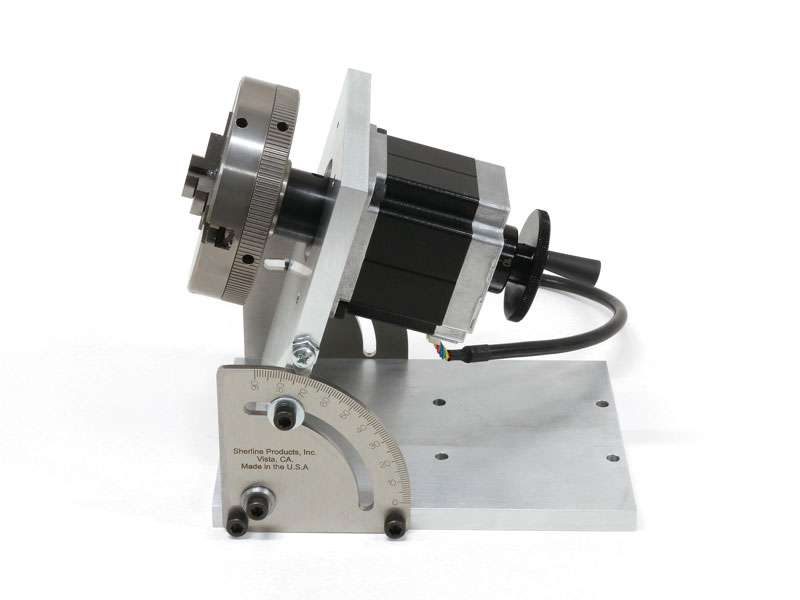

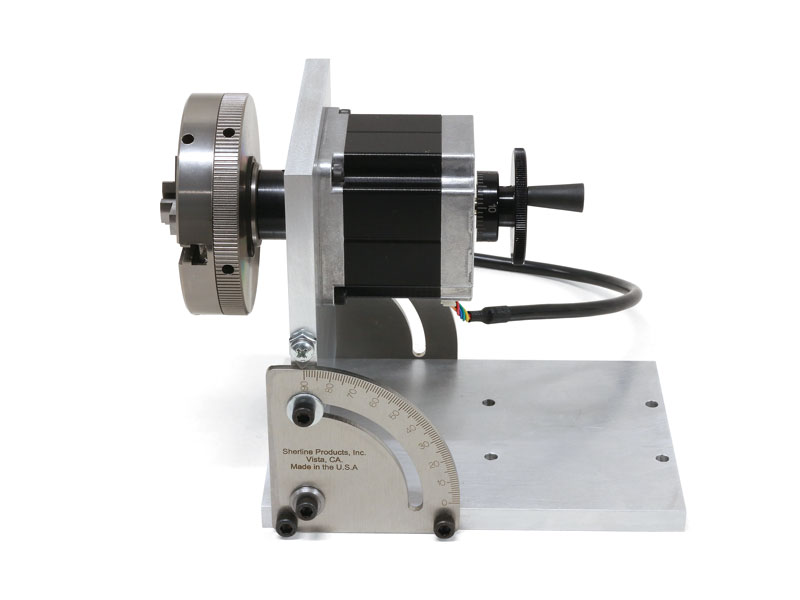

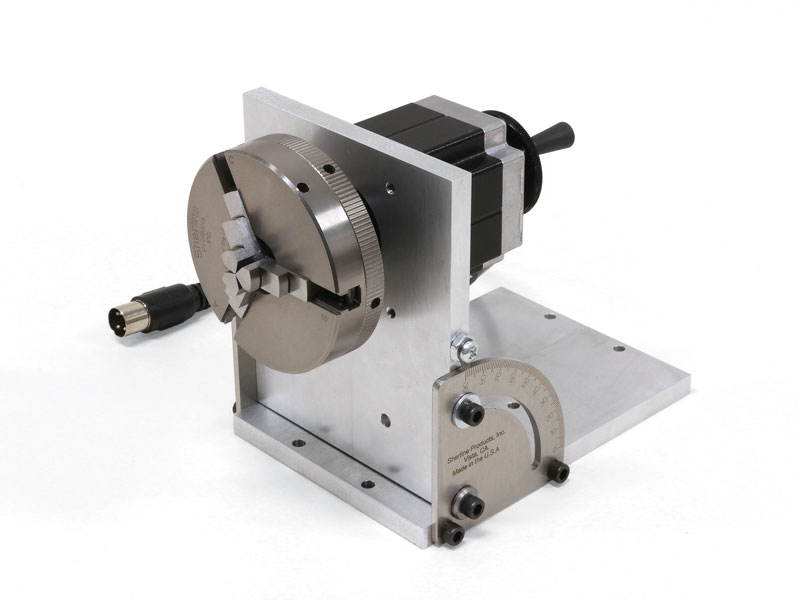

Laser Tilting Angle Table with Stepper Motor (Chuck not included, shown for reference only)

SKU: 6597 Category: Tag:

Product Description

About the Laser Tilting Angle Table with Stepper Motor

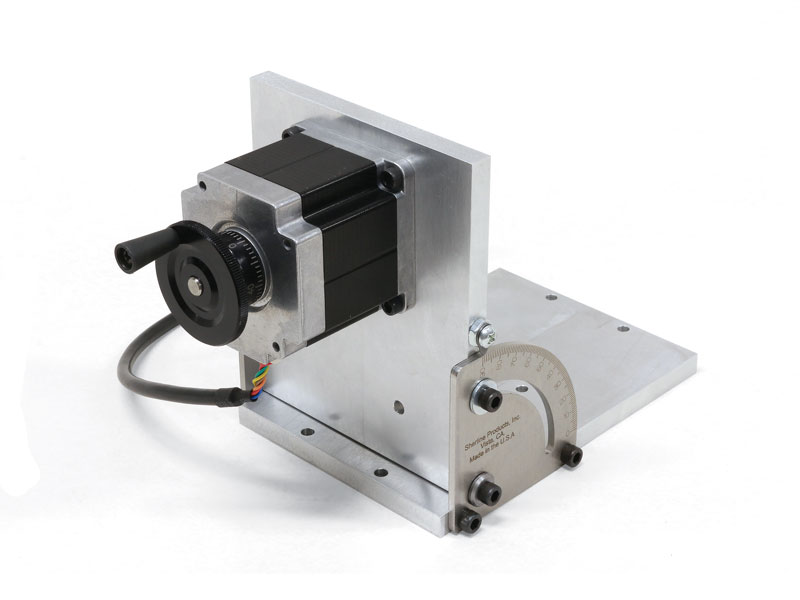

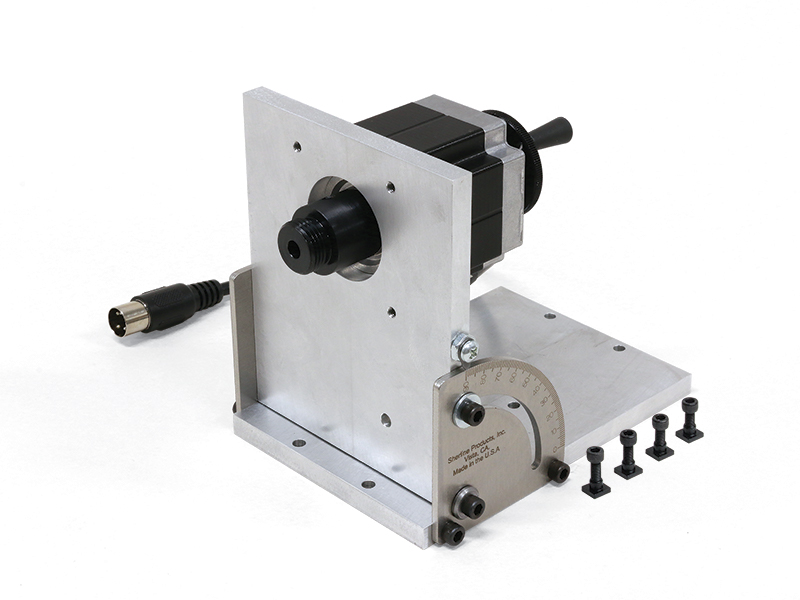

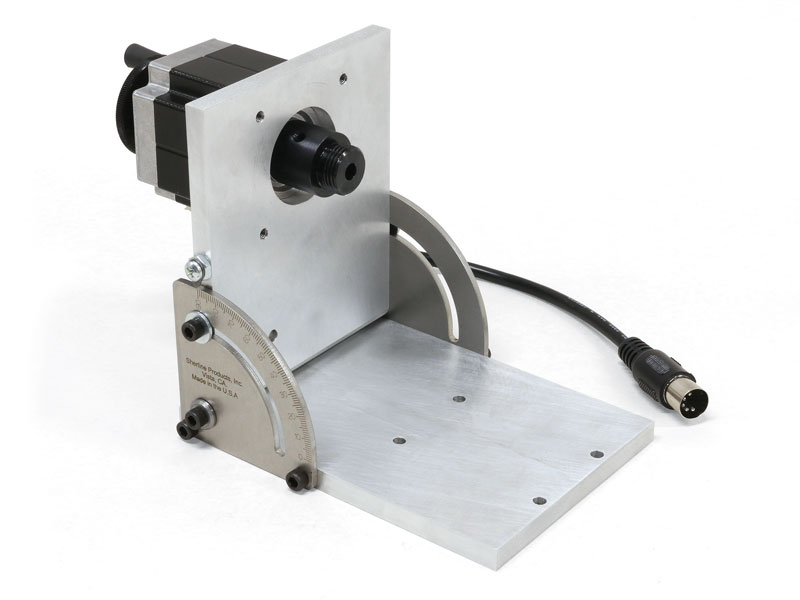

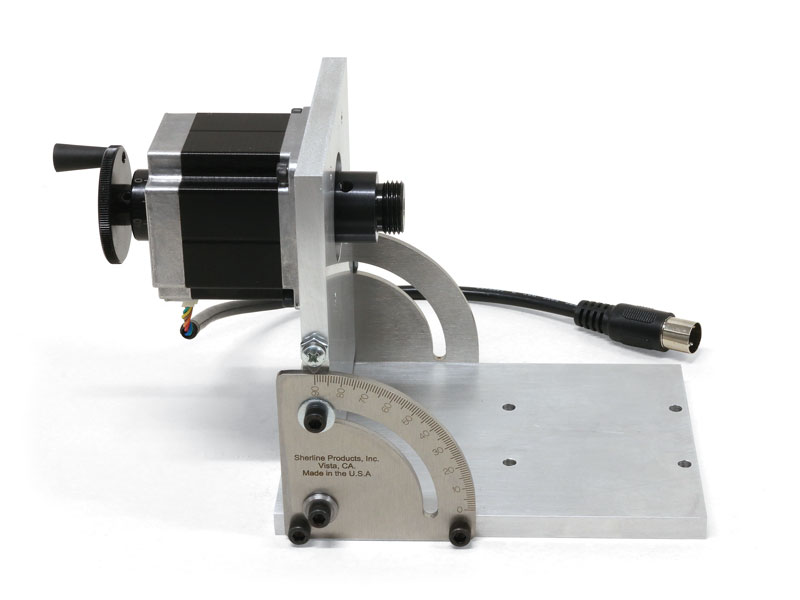

We designed this tilting angle table with a stepper motor as a way to offer a cheaper and quicker rotary axis for laser engraving instead of using our CNC rotary table. We have drilled and tapped the table top plate to accept one of our NEMA 23 stepper motors. You can mount any NEMA 23 frame stepper motor or servo motor to the table.* In addition to the stepper motor, we designed a chuck adapter for our 3- and 4-jaw self-centering chucks. This combination offers you a way to hold and rotate your parts.

*NOTE: For an additional fee, we can custom machine the table top plate to fit other size motors. Call and ask for a quote.

The tilting angle table includes the following

  • P/N 6597 Tilting angle table
  • P/N 37512LAZ Stepper motor to chuck adapter
  • P/N 67127 Stepper motor
  • (4) 10-32 T-nuts
  • (4) 10-32 x 1/2″ SHC Screw

The table can be set at any angle from 0° to 90° to hold your part with the tapered surface perpendicular to the laser beam. The tilting angle table can be clamped to any flat surface or held in a vice. The base also has a hole pattern so it can be mounted easily to our Laser Engraving Plate & XY Slide w/18″ Table (P/N 6540LAZ).

Other Purchasing Options:

1140 3-Jaw Chuck “Pin Jaws”
6540-LAZ/6541-LAZ Laser Engraving Plate & XY Slide w/18″ Table
6540-18/6541-18 XY Slide w/18″ Table
3750-LAZ Laser Engraving Tilting Angle Table
3- and 4-Jaw Self-Centering Chucks
87105 CNC Rotary Indexer

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.

Download PDF 6597 Instructions

Instructions PDF Download

Download PDF NMB Stepper Motor Specifications

Instructions PDF Download

Laser Tilting Angle Table with Stepper Motor
Tilting Angle Table Material Aluminum
Body Coating N/A
Body Dimensions (H x W x D) 2.625″ x 5.94″ x 4.125″
37540 Tilting Angle Table Bottom Plate
37511 Tilting Angle Table Top Plate for Stepper Motor
37529 Tilting Angle Table Side Plate, Engraved (left)
37530 Tilting Angle Table Side Plate, Engraved (right)
37550 Tilting Angle Table Bushing (2)
37512LAZ Stepper Motor to Chuck Adapter
30561 10-32 T-Nuts (4)
40670 10-32 x 1/2″ SHC Screw (13)
40660 3/16″ I.D. Washer (2)
50120 Pointer (2)
32100 10-32 hex nut
37531 8-32 X 3/8″ Pan Head Phillips Screw (2)
67127 Stepper Motor

Laser Tilting Angle Table with servo motor in action

The Tilting Angle Table (P/N 6597) in the video was designed by Sherline Products for use in laser marking applications, and the complete assembly with servo motor is available from Jimani, Inc., a company that provides quality laser marking systems.
