Product Description

Ultimate Machine Shop Package

If you want to set up a complete miniature machine shop with just one purchase, the “Ultimate Machine Shop” package makes it easy for you. We have combined our Model 4400/4410 deluxe 3.5 x 17″ lathe and Model 5400/5410  milling machine with a host of the most popular machining accessories. Included are all the items you need to set up for most machining jobs including cutting tools and holding fixtures.

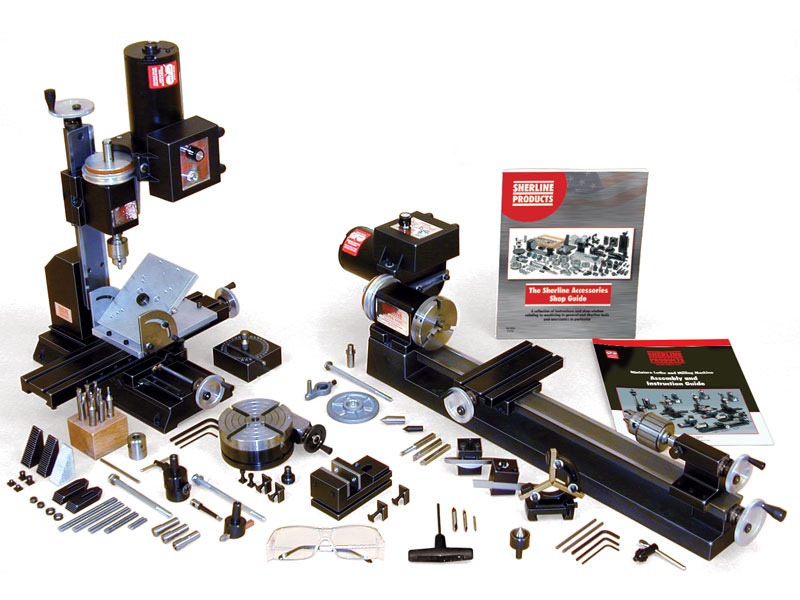

See the individual pages in the “LATHES” and “MILLS” sections for more details on the machines themselves and what comes with them. The package includes everything shown in the photo above.

In addition to the lathe and mill, you get the following accessories:
LATHE

  • 3.1″ 3-jaw Self-centering Chuck
  • 3/8″ Drill Chuck w/ Arbors, Key and Drawbolt
  • Steady Rest
  • Live Center
  • Rear Mount Cutoff Tool and Holder
  • 3-pc. 1/4″ HSS Tool Set (LH, RH, Boring)

MILL

  • Headstock Spacer Block
  • 3 pc. Center Drill Set
  • Fly Cutter w/ 1/4″ Carbide Cutting Tool
  • Boring Head
  • Boring Tool (5/16″ min. hole, 1″ max. depth)
  • 3-pc. Mill Collet Set w/ Drawbolt
  • 1/4″ Drill Chuck w/ #1 Morse Arbor, Key and Drawbolt
  • 3/8″ End Mill Holder
  • 6-pc. 3/8″ Shank End Mill Set
  • Milling Vise
  • Step Block Hold-down Set
  • 4″ Rotary Table
  • Tilting Angle Table

MISCELLANEOUS

  • 5/32″ Sherline Hex T-Driver
  • Sherline Accessories Shop Guide book
  • Safety Glasses

warning-symbol
The improper use of machine tools and their accessories can result in serious injury. Before using this tool, thoroughly read the instructions and make sure you understand its proper and safe use.

safety-glasses-symbol

Always wear safety glasses when operating machine tools.


Download PDF Assembly and Instruction Guide

Instructions PDF Download

Max clearance
(table to spindle)
8.00″ (203 mm)
Throat
(no spacer)
Optional
Throat
(w/ headstock spacer)
Adjustable
Travel, “X” Axis 8.65″ (220 mm)
Travel, “Y” Axis 5.00″ (127 mm)
Travel, “Z” Axis 6.25″ (159 mm)
Hole through spindle .405″ (10 mm)
Spindle nose thread 3/4″-16 T.P.I.
Spindle nose taper #1 Morse
Spindle runout of Morse taper .0005″ or less
Handwheel graduations .001″ (.01 mm)
Electronically controlled spindle speed range 70 to 2800 RPM
Width Overall* 15.00″ (381 mm)
Depth Overall* Base footprint: 13.875″ (352.5 mm); With fully extended brass leadscrew cover: 16.75″ (425.5 mm)
Height Overall (Max.)* 20.75″ (527 mm)
Table size 2.75″ x 13.00″ (70 x 330 mm)
Hold-down provision 2 T-Slots
Shipping Weight 40 lb. (18.2 kg)
Movements in addition
to X-, Y- and Z-axes
Headstock rotation (90° left/right)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications
Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

*Overall dimensions include motor and speed control

Swing Over Bed 3.50″ (90 mm)
Swing Over Carriage 1.75″ (45 mm)
Distance Between Centers 17.00″ (430 mm)
Hole Through Spindle .405″ (10 mm)
Spindle Nose Thread 3/4″-16 T.P.I.
Spindle Nose Taper #1 Morse
Spindle Runout of Morse Taper .0005″ or less
Travel of Crosslide 4.25″ (110 mm)
Tailstock Spindle Taper #0 Morse
Protractor Graduations 0° to 45° by 5°
Handwheel Graduations .001″ (.01 mm)
Length Overall 32.5″ (826 mm)
Width Overall 8.00″ (267 mm)
Height Overall 8.00″ (216 mm)
Shipping Weight 31 lb. (14.1 kg)
Motor 90 volt DC with electronic speed control that accepts any incoming current from 100VAC to 240 VAC, 50 Hz or 60 Hz.

Click here for motor specifications

Spindle Speed Range 70-2800 RPM continuously variable by electronic speed control

Click on the link for the exploded view of the 4400-Series Manual Lathe to help identify replacement parts.

Click on the link for the exploded view of the 5000 and 5400 Series Manual Mills to help identify replacement parts.

If you are still uncertain please call our customer service representatives for help with this item.

If you are working with brass or wood, we suggest you use the toggle switch dust cover to protect the life of your motor & speed control.
